Hyundai Sonata: Steering Gear box. Components and Components Location - Electric Power Steering - Steering SystemHyundai Sonata: Steering Gear box. Components and Components Location

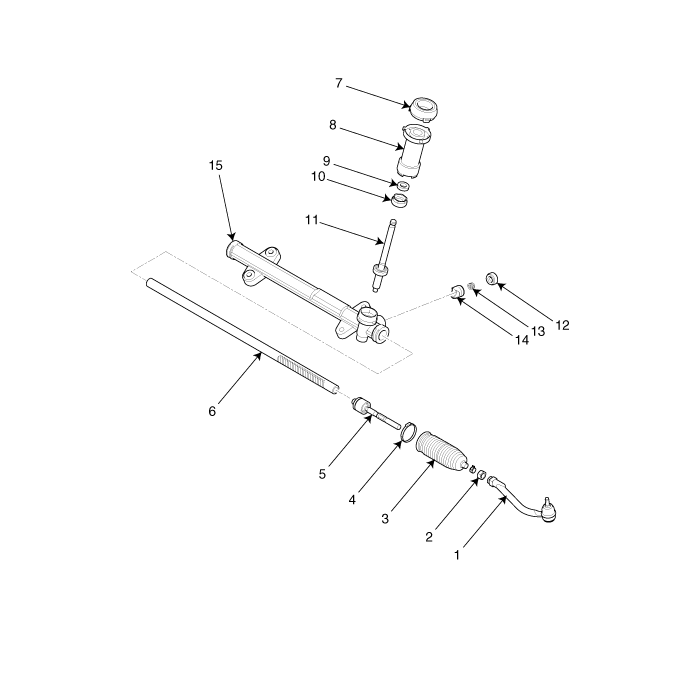

Components

1. Tie rod end
2. Lock nut
3. Bellows
4. Bellows band
5. Tie rod
6. Rack bar
7. Dust packing
8. Dust cap
9. Oil seal
10. Pinion plug
11. Pinion assembly
12. Yoke plug
13. Yoke spring
14. Support yoke assembly
15. Rack housing


    Steering Column and Shaft. Repair procedures
    Replacement 1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds. 2. Turn the steering wheel so ...

    Steering Gear box. Repair procedures - Revised
    Replacement 1. Remove the front wheel & tire. Tightening torque : 88.3 ~ 107.9N.m(9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft) ...
