Hyundai Sonata: Alternator. Components and Components Location - Charging System - Engine Electrical System - Hyundai Sonata YF 2011-2019 Service ManualHyundai Sonata: Alternator. Components and Components Location

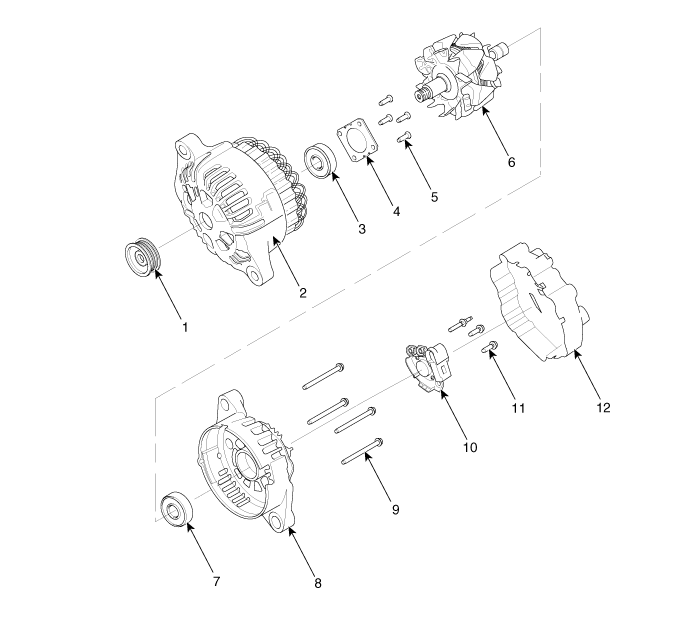

Components

1. Pulley
2. Front bracket
3. Front bearing
4. Bearing cover
5. Bearing cover bolt
6. Rotor
7. Rear bearing
8. Rear bracket
9. Through bolt
10. Brush holder assembly
11. Brush holder bolt
12. Rear cover


    Repair procedures
    On-vehicle Inspection Х Check that the battery cables are connected to the correct terminals. ...

    Alternator. Repair procedures
    Removal and Installation 1. Disconnect the battery negative terminal first, then the positive terminal. Tightening torque : (+) term ...
