Hyundai Sonata: Brake Booster. Components and Components Location - Brake System - Brake System - Hyundai Sonata YF 2011-2019 Service ManualHyundai Sonata: Brake Booster. Components and Components Location

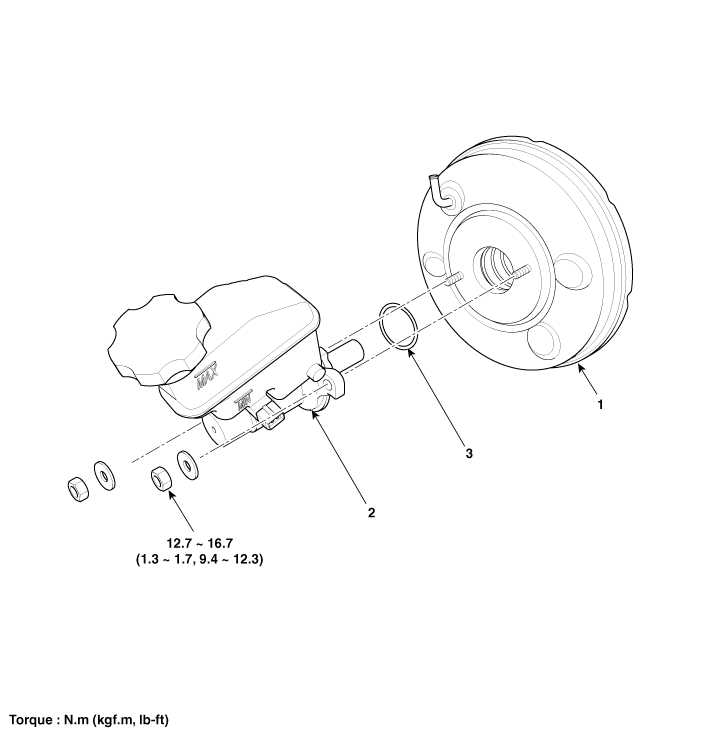

Components (1)

1. Brake booster
2. Master cylinder assembly
3. O-ring

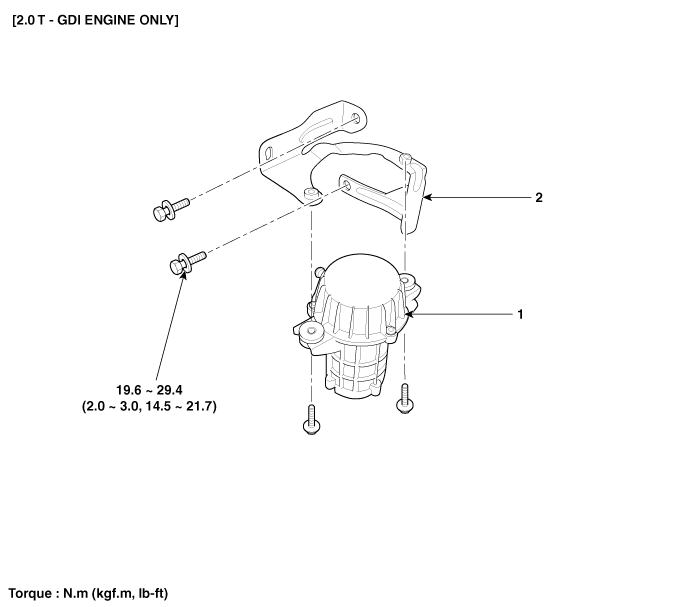

Components (2)

1. Vacuum pump
2. Bracket

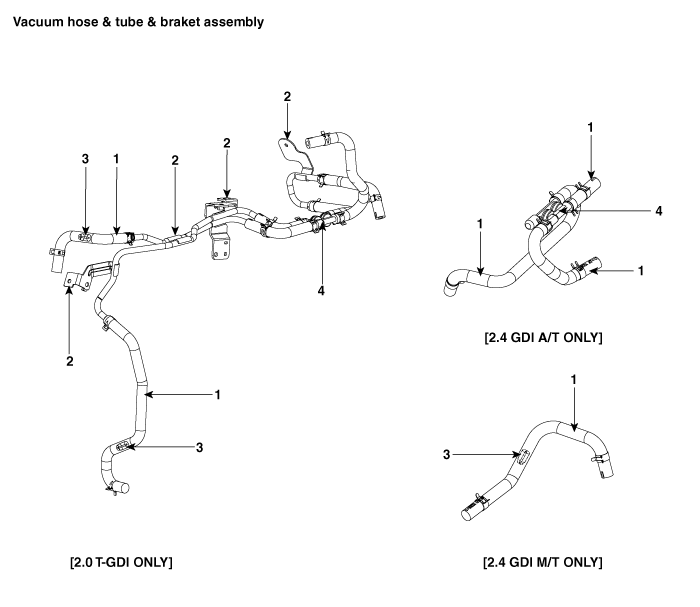

Components (3)

1. Vaccum hose
2. Tube mounting braket
3. Check valve
4. Intensifier


    Repair procedures
    Operation and Leakage Check Check all of the following items: Component Procedure Brake Booster (A) Check brake operation by applying the brakes ...

    Brake Booster. Repair procedures
    Brake Booster Operating Test For simple checking of the brake booster operation, carry out the following tests. 1. Run the engine for one or two minutes, and then stop ...
