Hyundai Sonata: Canister Close Valve (CCV). Schematic Diagrams - Engine Control System - Engine Control/Fuel SystemHyundai Sonata: Canister Close Valve (CCV). Schematic Diagrams

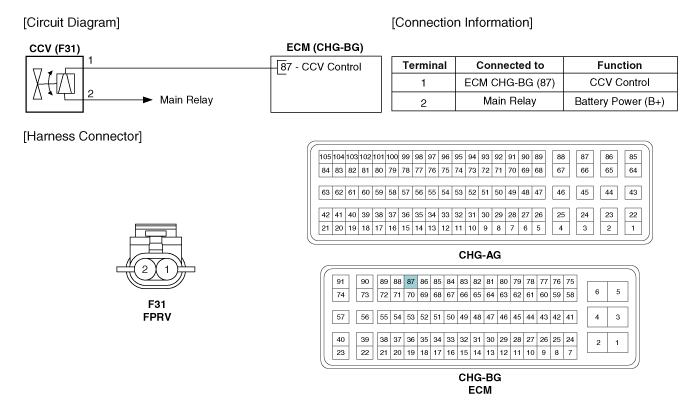

Circuit Diagram


    Canister Close Valve (CCV). Specifications
    Specification Item Specification Coil Resistance (Ω) 19.9 ~ 22.9 [20°C(68°F) ...

    Canister Close Valve (CCV). Repair procedures
    Inspection 1. Turn the ignition switch OFF. 2. Disconnect the CCV connector. 3. Measure resistance between the ...
