Hyundai Sonata: Components and Components Location - Valve Body System - Automatic Transaxle System - Hyundai Sonata YF 2011-2019 Service ManualHyundai Sonata: Components and Components Location

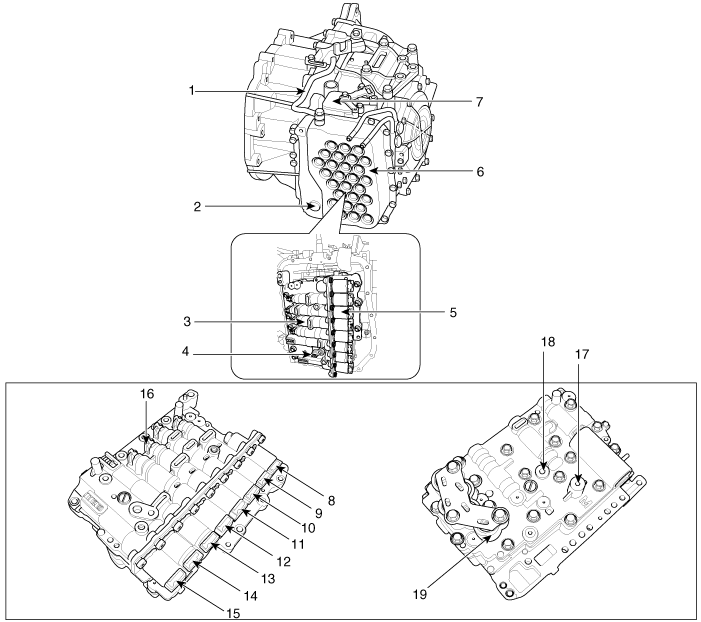

Component Location

1. Air breather hose
2. Oil level plug
3. Valve body assembly
4. Oil temperature sensor
5. Solenoid valve
6. Valve body cover
7. Inhibitor switch
8. T/Con (VFS N/L)
9. 35R(VFS,N/H)
10. 2/6B (VFS,N/L)
11. UD(VFS,N/H)
12. OD(VFS,N/H)
13. SS-B(ON/OFF)
14. SS-A(ON/OFF)
15. LINE pressure(VFS,N/H)
16. PCV adjust screw
17. UD/B pressure
18. LR/B pressure(Low & Reverse Brake)
19. Accumulator


    Valve Body. Specifications
    Specification Piece 3pcs Spool 20ea Control Full line pressure variable control Torque converter release control ...
