Hyundai Sonata: Components and Components Location - AVN System - Body Electrical SystemHyundai Sonata: Components and Components Location

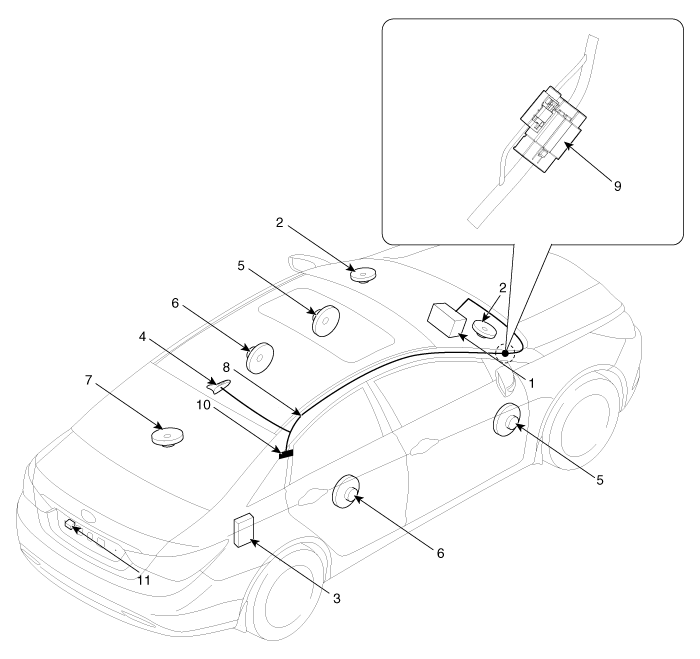

Components Location

1. AVN (A/V & Navigation head unit)
2. Midrange speaker
3. External amplifier
4. Roof antenna (GPS + SDARS)
5. Front door speaker
6. Rear speaker
7. Woofer speaker
8. Antenna feeder cable
9. Feeder cable joint connector
10. Glass antenna (Radio)
11. Back view camera

※ SDARS : Satellite Digital Audio Radio Service


    Specifications
    Specifications Item Specification Power source DC 14.4V (-) ground Frequency range / Channel space FM : 87.9 ~ 107.9 ...

    Schematic Diagrams
    System Block Diagram ...
