Hyundai Sonata: Components and Components Location - Seat Electrical - Body Electrical System - Hyundai Sonata YF 2011-2019 Service ManualHyundai Sonata: Components and Components Location

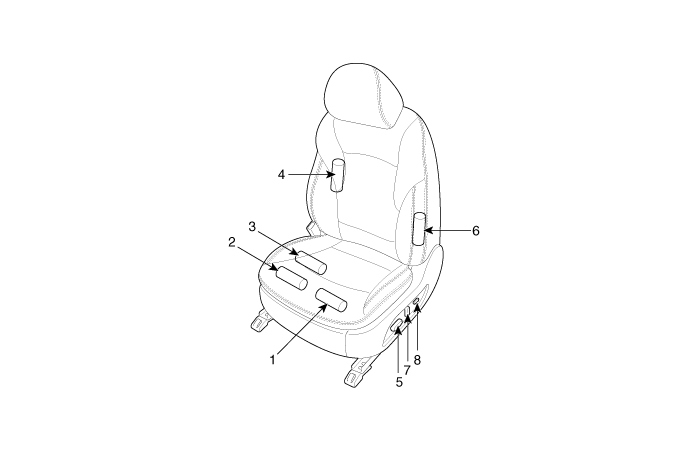

Component Location

1. Slide motor
2. Front height motor
3. Rear height motor
4. Lumber support motor
5. Power seat control switch
6. Recline motor
7. Recline control switch
8. Lumber support switch



    Power Seat Motor. Repair procedures
    Inspection Power Seat Motor 1. Disconnect the connectors for each motor. A : Front height motor B : Slide motor C : Rear height motor D : Re ...
