Hyundai Sonata: Components and Components Location - Button Engine Start System - Body Electrical SystemHyundai Sonata: Components and Components Location

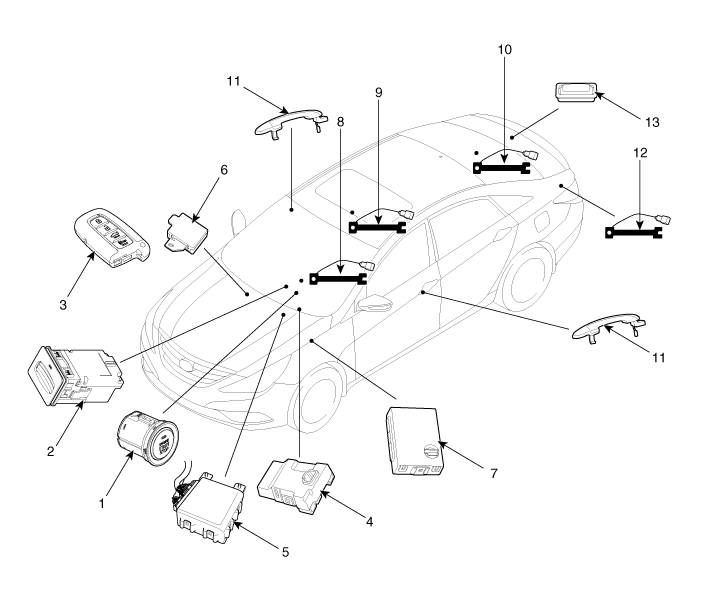

Component Location

1. Start Stop Button(SSB)
2. FOB key holder
3. FOB key
4. PDM(Power Distribution Module)
5. Smart key unit
6. RF receiver
7. Body control module
8. Interior antenna 1
9. Interior antenna 2
10. Trunk antenna
11. Door handle & door antenna
12. Bumper antenna
13. Trunk lid open switch


    Schematic Diagrams
    Circuit Diagram (1) Circuit Diagram (2) ...
