Hyundai Sonata: Engine compartment - Your vehicle at a glance - Hyundai Sonata YF 2011-2018 Owner's ManualHyundai Sonata: Engine compartment

■ 2.4 GDI

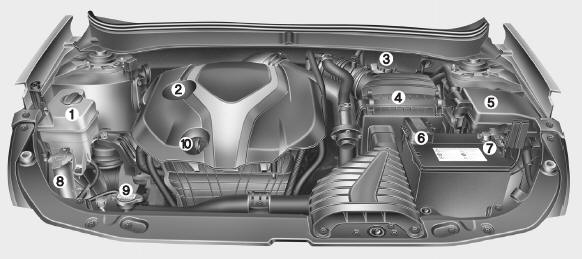

1. Engine coolant reservoir

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Fuse box
6. Positive battery terminal
7. Negative battery terminal
8. Windshield washer fluid reservoir
9. Radiator cap
10. Engine oil dipstick

■ 2.0 TGDI

1. Engine coolant reservoir

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Fuse box
6. Positive battery terminal
7. Negative battery terminal
8. Windshield washer fluid reservoir
9. Radiator cap
10. Engine oil dipstick
