Hyundai Sonata: ESC Control Module. Components and Components Location - ESC(Electronic Stability Control) System - Brake SystemHyundai Sonata: ESC Control Module. Components and Components Location

Hyundai Sonata YF 2011-2014 Service Manual / Brake System / ESC(Electronic Stability Control) System / ESC Control Module. Components and Components Location

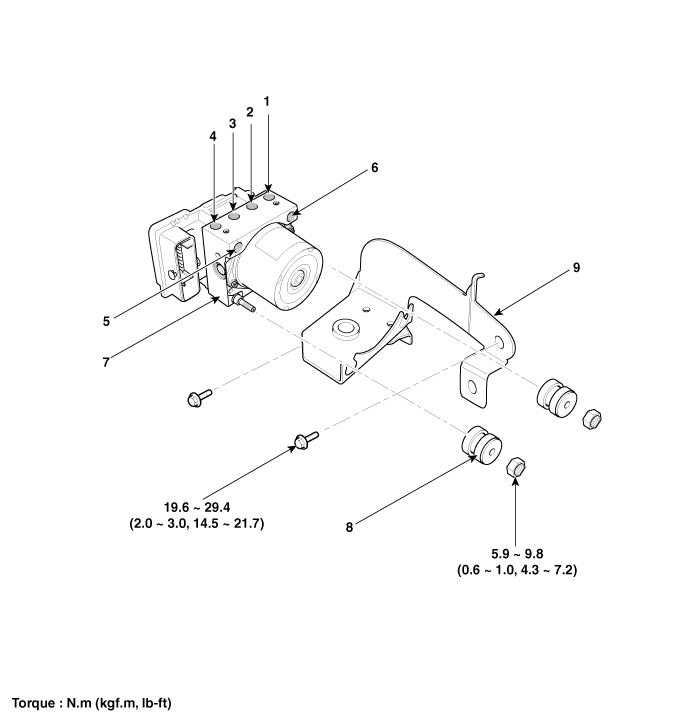

Components

1. Front - left tube
2. Rear - right tube
3. Rear - left tube
4. Front - right tube
5. MC2
 6. MC1
7. ESC control module(HECU)
8. Damper
9. Bracket


    EBD(Electronic Brake-force Distribution). Description and Operation
    Operation The EBD system (Electronic Brake force Distribution) as a sub-system of the ABS system is to control the maximum braking effectiveness by the rear wheels. It further utilizes ...
