Hyundai Sonata: Fuel Tank Pressure Sensor (FTPS). Schematic Diagrams - Engine Control System - Engine Control/Fuel System - Hyundai Sonata YF 2011-2019 Service ManualHyundai Sonata: Fuel Tank Pressure Sensor (FTPS). Schematic Diagrams

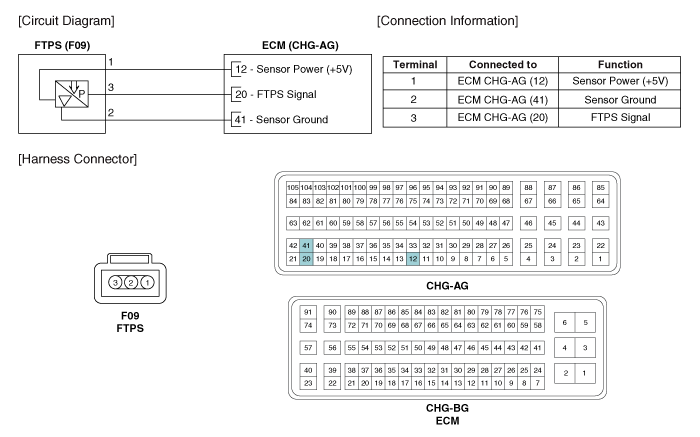

Circuit Diagram


    Fuel Tank Pressure Sensor (FTPS). Specifications
    Specification Pressure [kPa (kgf/cm², in H2O) Output Voltage (V) -6.67 (-0.068, -26.8) 0.5 0 2.5 ...

    Fuel Tank Pressure Sensor (FTPS). Repair procedures
    Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the FTPS. Specifica ...
