Hyundai Sonata: Knock Sensor (KS). Schematic Diagrams - Engine Control System - Engine Control/Fuel SystemHyundai Sonata: Knock Sensor (KS). Schematic Diagrams

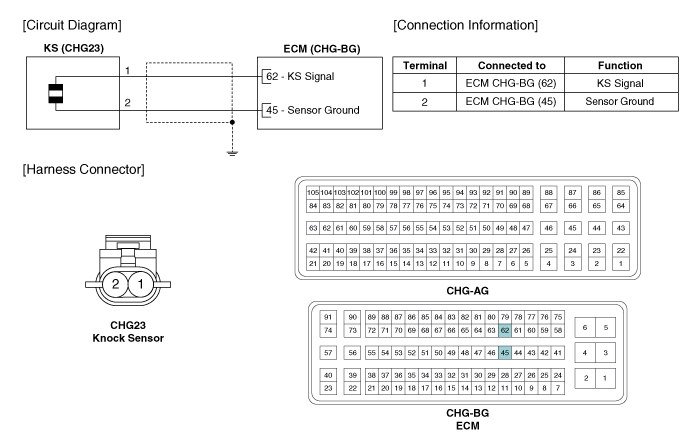

Circuit Diagram


    Knock Sensor (KS). Specifications
    Specification Item Specification Capacitance (pF) 850 ~ 1,150 ...

    Knock Sensor (KS). Repair procedures
    Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Remove the intake manifold (Refer to “Intake ...
