Hyundai Sonata: Manifold Absolute Pressure Sensor (MAPS). Schematic Diagrams - Engine Control System - Engine Control/Fuel SystemHyundai Sonata: Manifold Absolute Pressure Sensor (MAPS). Schematic Diagrams

Hyundai Sonata YF 2011-2014 Service Manual / Engine Control/Fuel System / Engine Control System / Manifold Absolute Pressure Sensor (MAPS). Schematic Diagrams

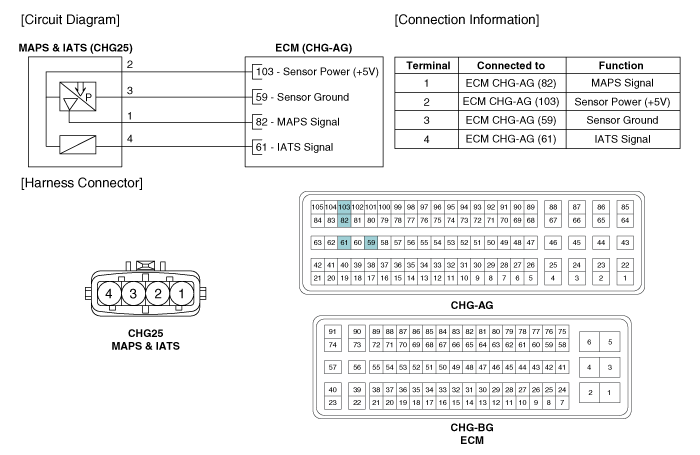

Circuit Diagram


    Manifold Absolute Pressure Sensor (MAPS). Specifications
    Specification Pressure [kPa (kgf/cm², psi)] Output Voltage (V) 20.0 (0.20, 2.9) 0.79 46.7 (0.47, 6.77) 1.84 ...

    Manifold Absolute Pressure Sensor (MAPS). Repair procedures
    Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the MAPS at idle and IG ON. ...
