Hyundai Sonata: Rear Door. Components and Components Location - Exterior - Body (Interior and Exterior)Hyundai Sonata: Rear Door. Components and Components Location

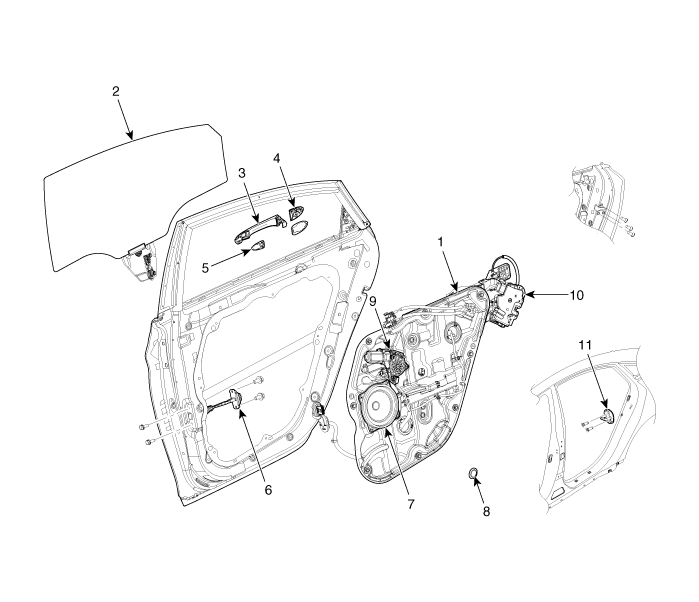

Components

1. Door module
2. Window glass
3. Outside handle
4.Outside handle cover
5.Door handle pad
6. Door checker
7. Door speaker
8.Hole plug
9. Power window motor
10.Door latch
11.Door striker
