Hyundai Sonata: Seat Heater. Schematic Diagrams - Seat Electrical - Body Electrical System - Hyundai Sonata YF 2011-2019 Service ManualHyundai Sonata: Seat Heater. Schematic Diagrams

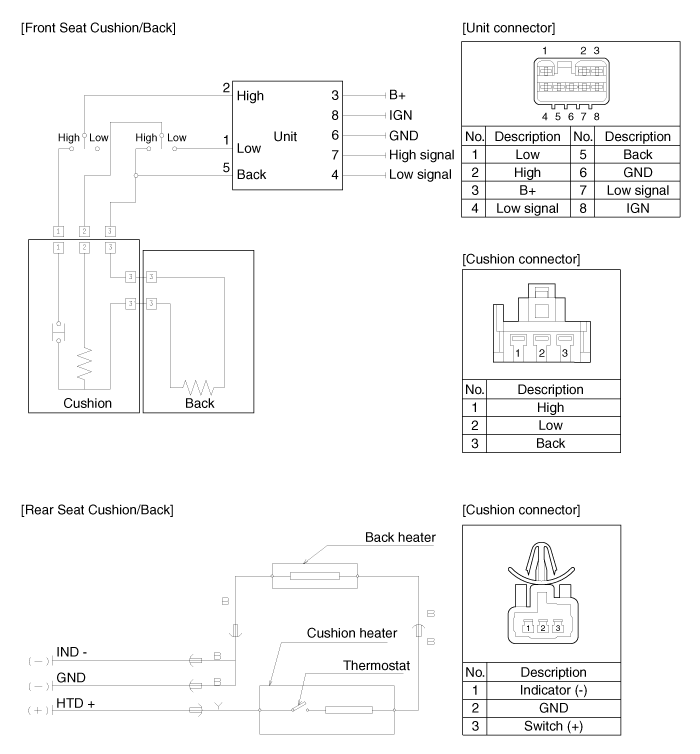

Circuit Diagram


    Seat Heater. Repair procedures
    Inspection First Seat Heater 1. Check for continuity and measure the resistance between terminals. [Cushion] [Back] ...
