Hyundai Sonata: Shift Lever. Components and Components Location - Manual Transaxle Control System - Manual Transaxle SystemHyundai Sonata: Shift Lever. Components and Components Location

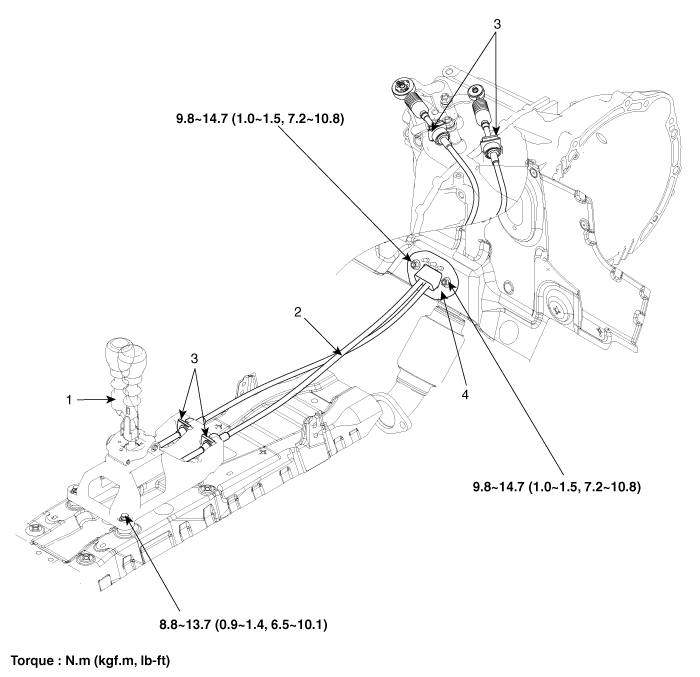

Components

1. Shift lever assembly
2. Gear shift cable assembly
3. Clips
4. Retainer


    Shift Lever. Repair procedures
    Removal 1. Remove the front console assembly.(Refer to "Interior" in BD group) 2. Remove the snap pin (A) and the clips (B). ...
