Hyundai Sonata: Starter. Components and Components Location - Starting System - Engine Electrical SystemHyundai Sonata: Starter. Components and Components Location

Components

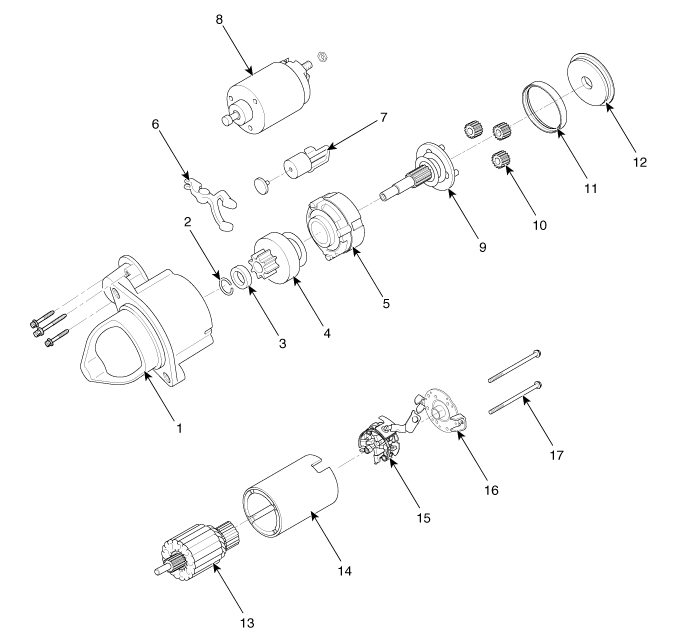

[REMY]

1. Front bracket
2. Stop ring
3. Stopper
4. Overrun clutch assembly
5. Internal gear assembly
6. Lever
 7. Lever packing
8. Magnet switch assembly
9. Planet shaft assembly
10. Planetary gear assembly
11. Packing
12. Shield
 13. Armature assembly
14. Yoke assembly
15. Brush holder assembly
16. Rear bracket
17. Through bolt

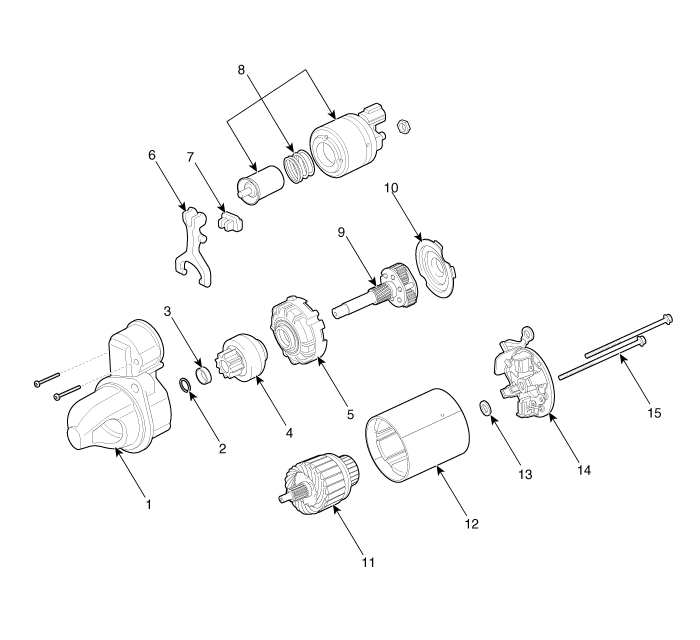

[VALEO]

1. Front bracket
2. Stop ring
3. Stopper
4. Overrun clutch assembly
5. Internal gear assembly
 6. Lever
7. Lever stop
8. Magnet switch assembly
9. Drive shaft assembly
10. Gasket sheet
 11. Armature assembly
12. Yoke assembly
13. Adjuster washer
14. Complete rear part assembly
15. Through bolt
