Hyundai Sonata: Components and Components Location
Components
|

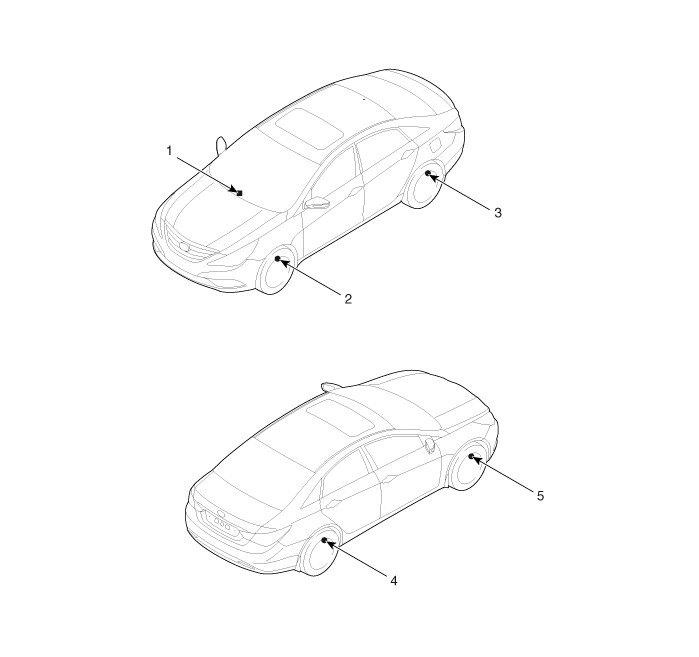

1. Receiver 2. TPMS sensor (FL) 3. TPMS sensor (RL) |
4. TPMS sensor (RR) 5. TPMS sensor (FR) |
Description and Operation
Description
Tread Lamp
-
Tire Under Inflation / Leak Warning.
1.
Turn on condition
A.
When tire pressu ...
