Hyundai Sonata: Components and Components Location - Auto Lighting Control System - Body Electrical SystemHyundai Sonata: Components and Components Location

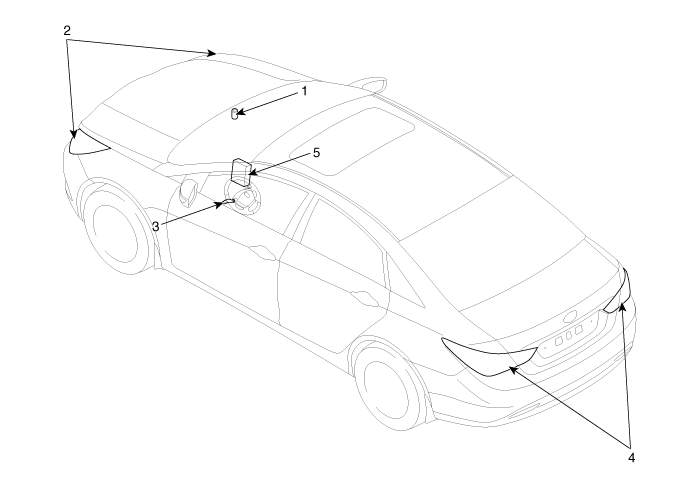

Component Location

1. Auto light sensor
2. Head lamps
3. Lighting switch (Auto)
4. Tail lamps
5. Body control module (BCM)


    Specifications
    Specifications Items Specifications Rated voltage 5V Load Max. 1mA (When head lamp lighting) Illumin ...

    Schematic Diagrams
    Circuit Diagram ...
