Hyundai Sonata: Driver Airbag (DAB) Module and Clock Spring. Components and Components Location - Airbag Module - RestraintHyundai Sonata: Driver Airbag (DAB) Module and Clock Spring. Components and Components Location

Hyundai Sonata YF 2011-2014 Service Manual / Restraint / Airbag Module / Driver Airbag (DAB) Module and Clock Spring. Components and Components Location

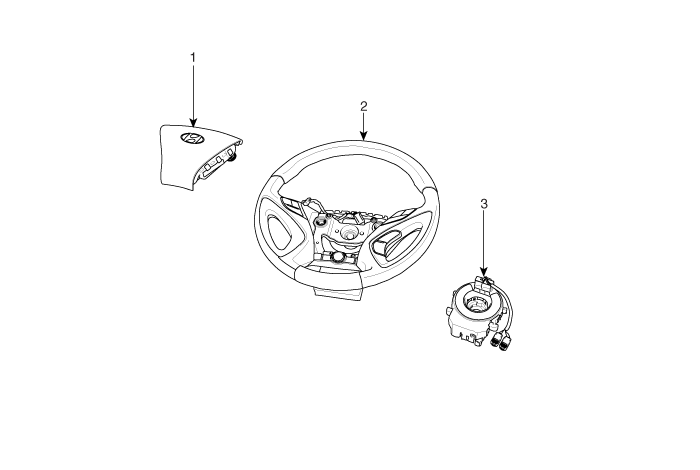

Components

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring


    Driver Airbag (DAB) Module and Clock Spring. Description and Operation
    Description Driver Airbag (DAB) is installed in the steering wheel and electrically connected to SRSCM via the clock spring. It protects the driver by deploying the airbag when frontal crash ...

    Driver Airbag (DAB) Module and Clock Spring. Repair procedures
    Removal 1. Disconnect the battery negative cable and wait for at least three minutes before beginning work. 2. Remove the driver airbag m ...
