Hyundai Sonata YF 2011-2014 Service Manual / Body Electrical System / Windshield Wiper/Washer / Front Wiper Motor. Components and Components Location

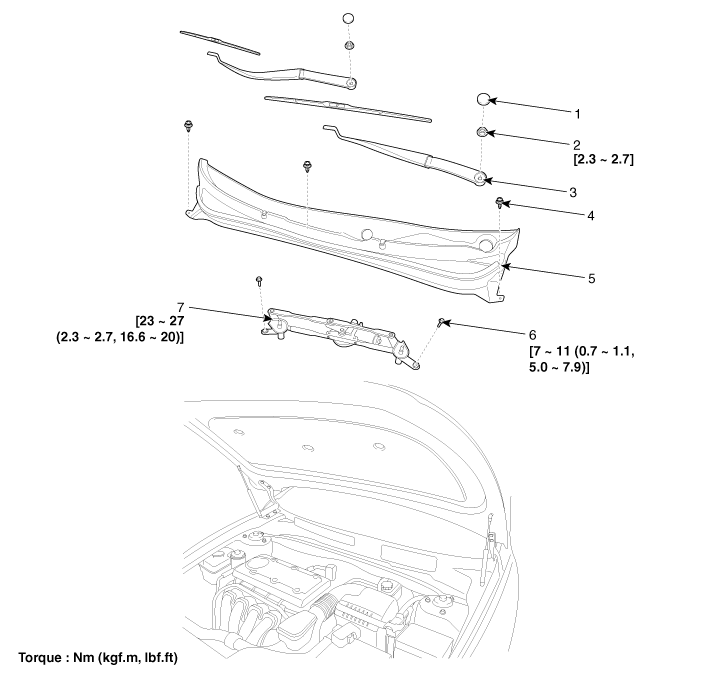

Component Location

1. Cap
2. Nut
3. Wiper arm & blade
4. Rivet
 5. Cowl top cover
6. Bolt
7. Wiper motor & linkage assembly


    Windshield Wiper-Washer Switch. Repair procedures
    Inspection Check for continuity between the terminals while operating the wiper and washer switch. If it is not normal condition, replace wiper and wiper switch. Wiper Switch Washer S ...

    Front Wiper Motor. Repair procedures
    Removal 1. Loosen the windshield wiper arm nut (A) after removing a wiper cap (B). 2. Remove the windshield wiper arm and blade (A ...
