Hyundai Sonata: Occupant classification system - Air bag - advanced supplemental restraint system - Safety features of your vehicleHyundai Sonata: Occupant classification system

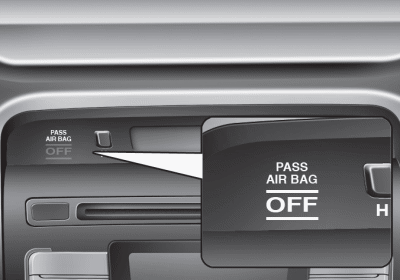

Type A

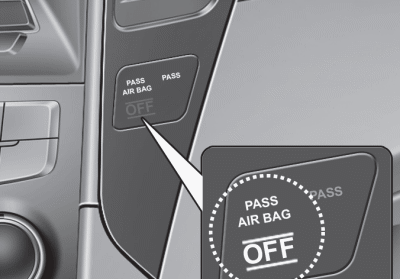

Type B

Type B

Your vehicle is equipped with an occupant classification system in the front

Your vehicle is equipped with an occupant classification system in the front passenger's seat.

The occupant classification system is designed to detect the presence of a properly-seated front passenger and determine if the passenger's front air bag should be enabled (may inflate) or not. The driver's front air bag is not affected or controlled by the occupant classification system.

    SRS components and functions
    The SRS consists of the following components: 1. Driver's front air bag module 2. Passenger's front air bag module 3. Side impact air bag modules 4. Curtain air bag modules 5. Retractor ...

    Main components of occupant classification system
    A detection device located within the front passenger seat frame. Electronic system to determine whether the front passenger air bag system should be activated or deactivated. A warning ligh ...
