Hyundai Sonata: Audio Remote Control. Schematic Diagrams - Audio - Body Electrical SystemHyundai Sonata: Audio Remote Control. Schematic Diagrams

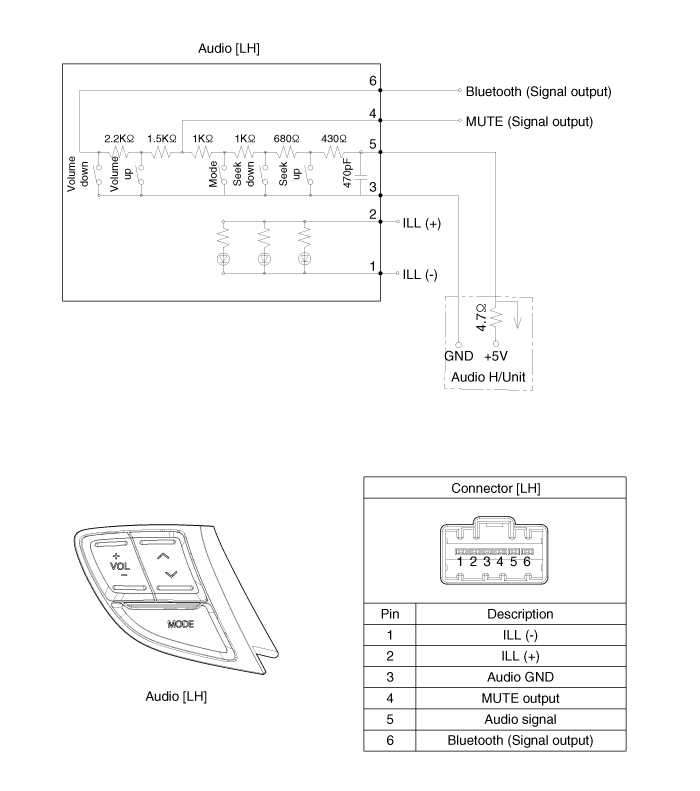

Circuit Diagram


    Antenna. Repair procedures
    Inspection Glass Antenna Test 1. Wrap aluminum foil (A) around the tip of the tester probe (B) as shown. 2. Touch one tester p ...

    Audio Remote Control. Repair procedures
    Inspection 1. Check the audio remote control switch for resistance between No.3 and No.5 terminals in each switch position. Switch ...
