Hyundai Sonata: Battery. Components and Components Location - Charging System - Engine Electrical System - Hyundai Sonata YF 2011-2019 Service ManualHyundai Sonata: Battery. Components and Components Location

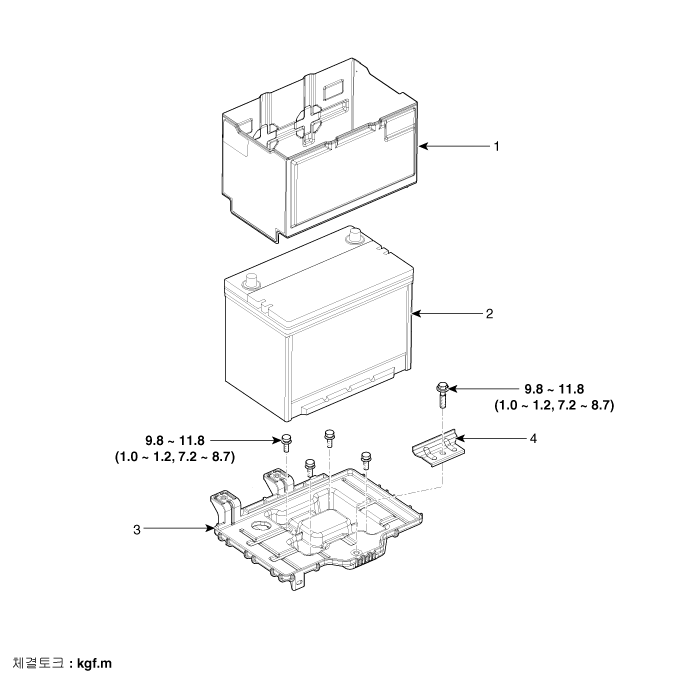

Components

1. Battery insulation pad
2. Battery
3. Battery tray
4. Battery mounting bracket


    Battery. Description and Operation
    Description 1. The maintenance-free battery is, as the name implies, totally maintenance free and has no removable battery cell caps. 2. W ...

    Battery. Repair procedures
    Removal and Installation 1. Disconnect the terminals from the battery. Tightening torque : (+) terminal (A) : 7.8 ~ 9.8N.m (0.8 ~ 1.0kgf. ...
