Hyundai Sonata: Body Repair - Body Dimensions - Body (Interior and Exterior)Hyundai Sonata: Body Repair

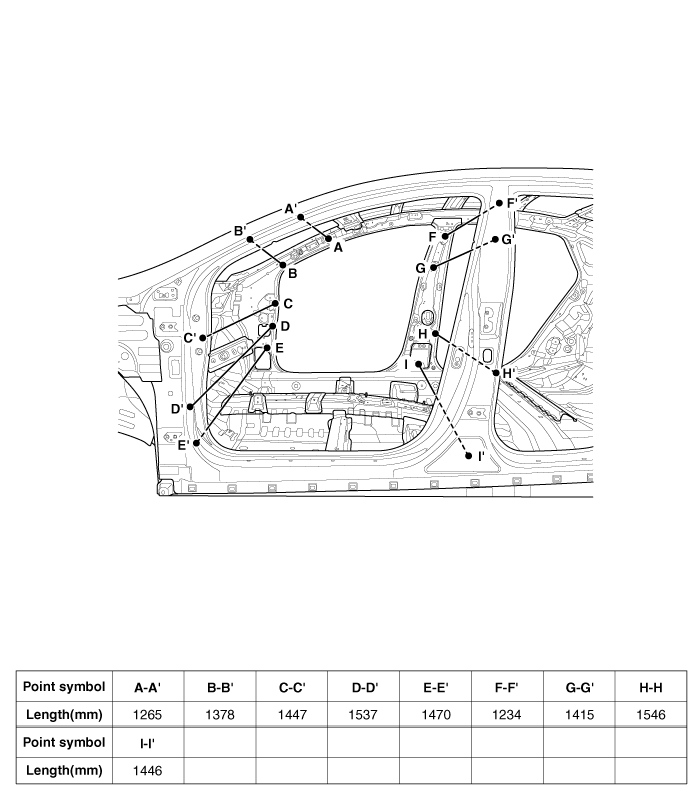

Interior A

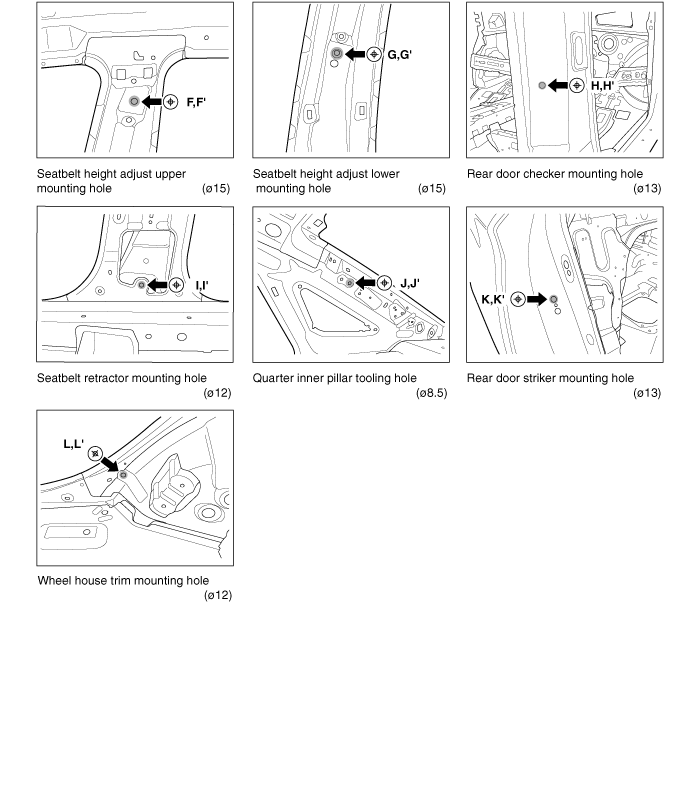

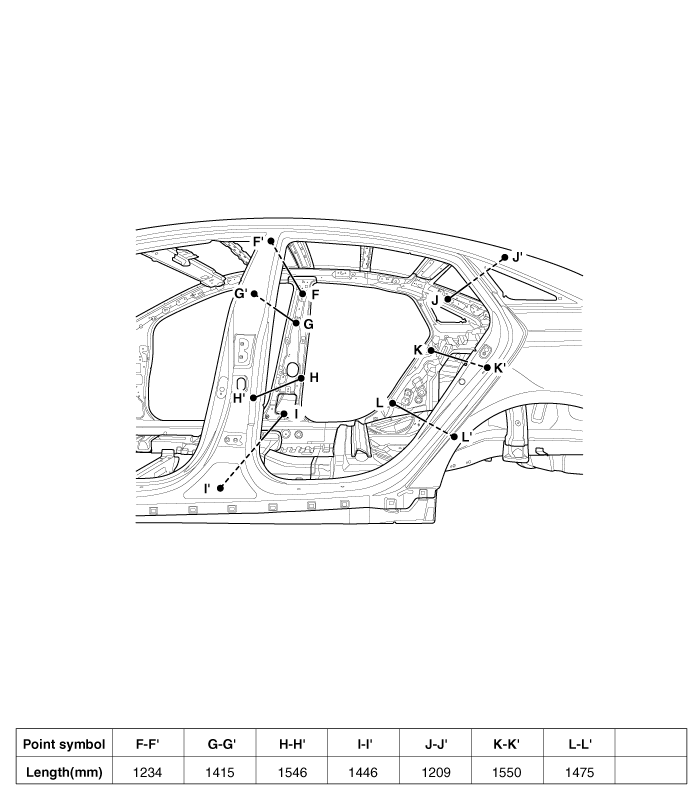

Interior B

Interior B

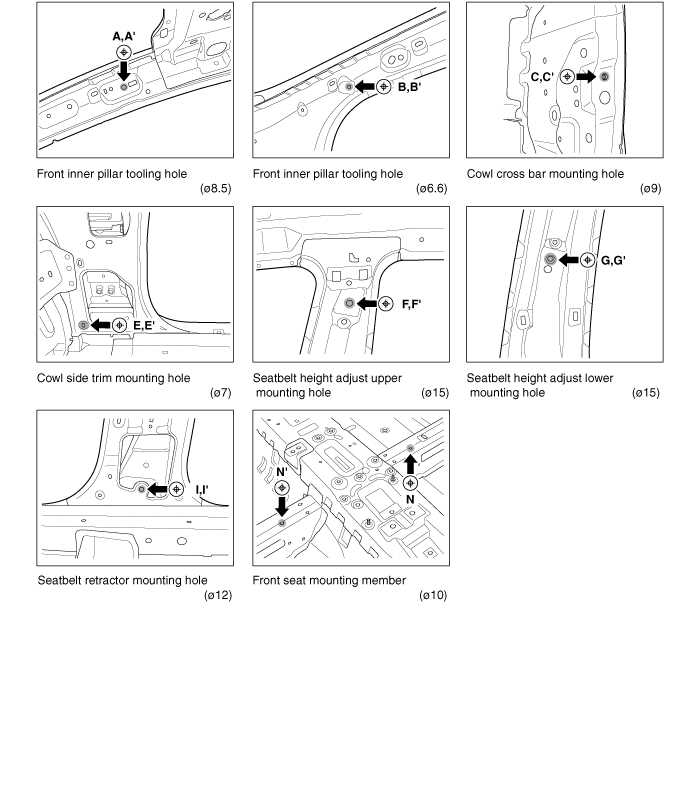

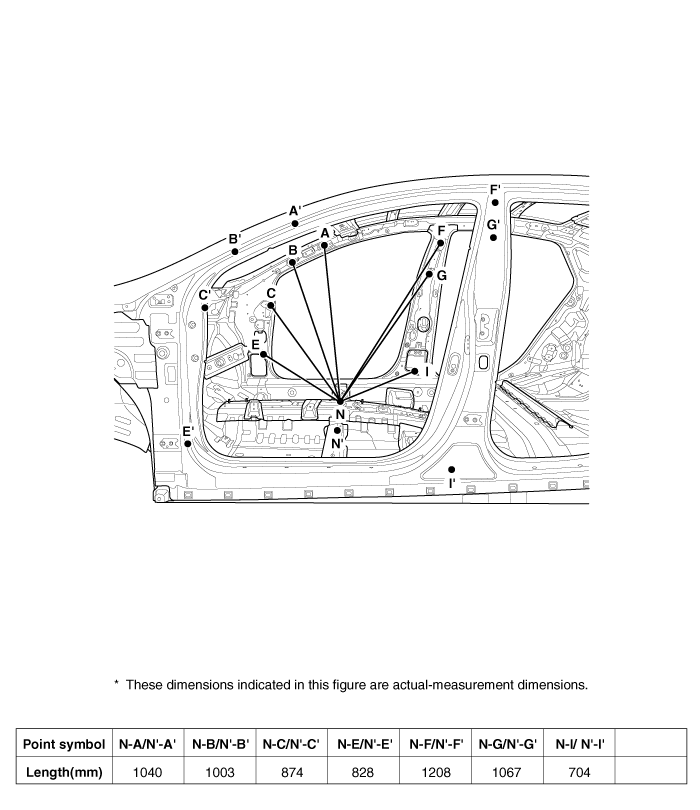

Interior C

Interior C

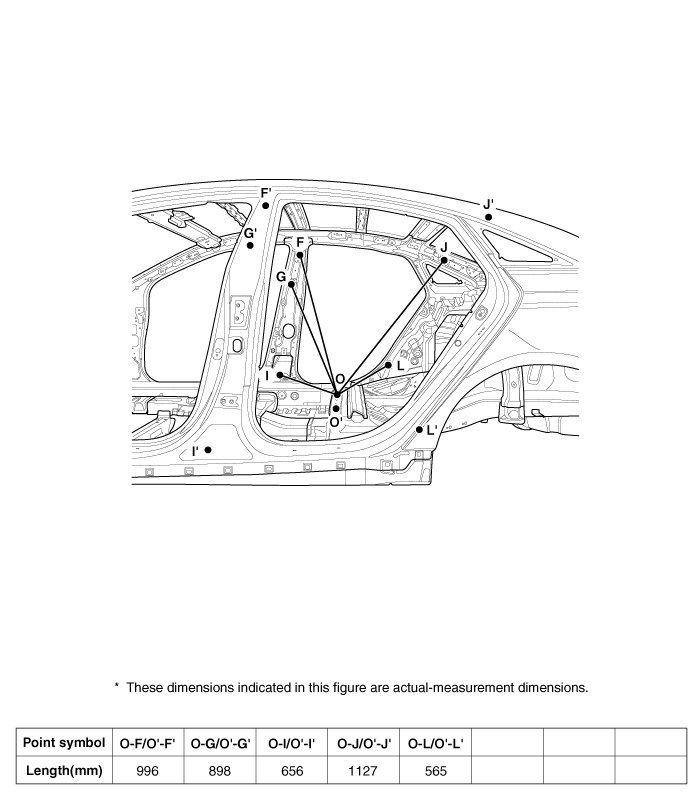

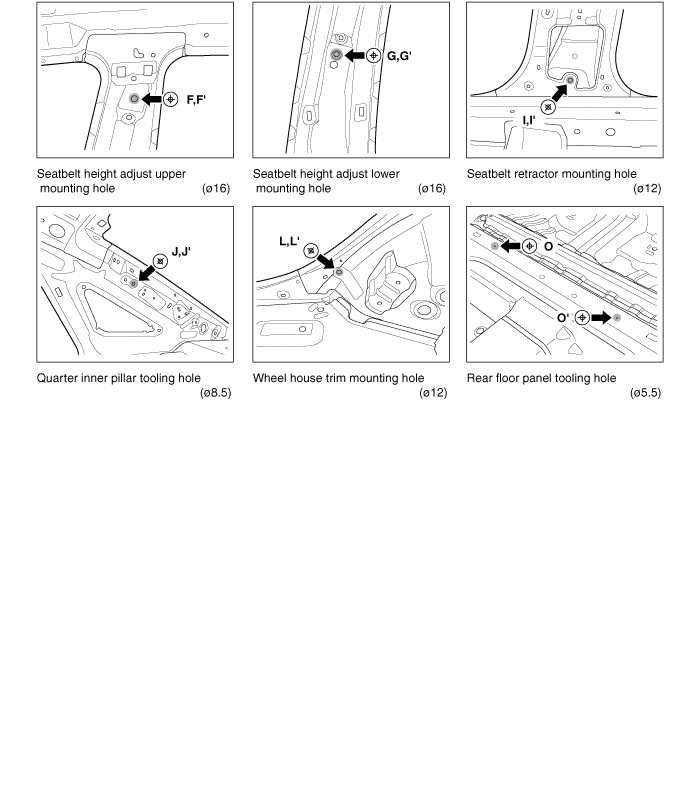

Interior D

Interior D
