Body Repair

Interior A Interior B Interior C Interior D ...

Under Body. Body Repair

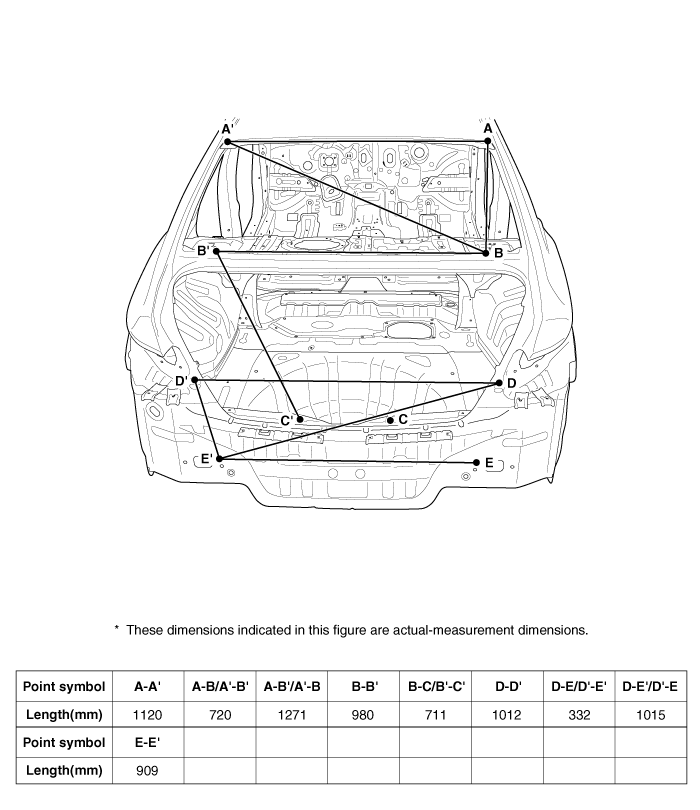

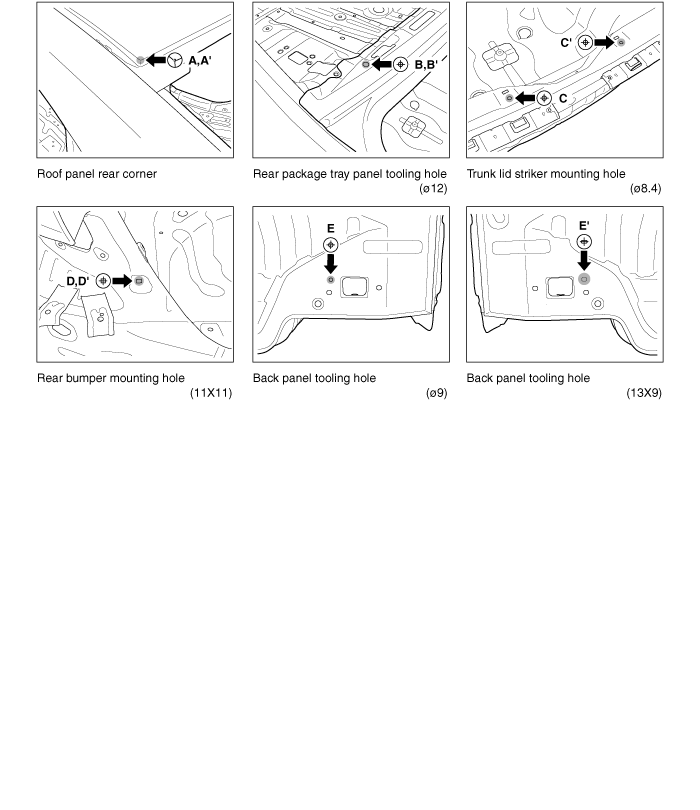

Projected Dimensions Actual- Measurement Dimensions ...
