Hyundai Sonata: Brake Pedal. Components and Components Location - Brake System - Brake SystemHyundai Sonata: Brake Pedal. Components and Components Location

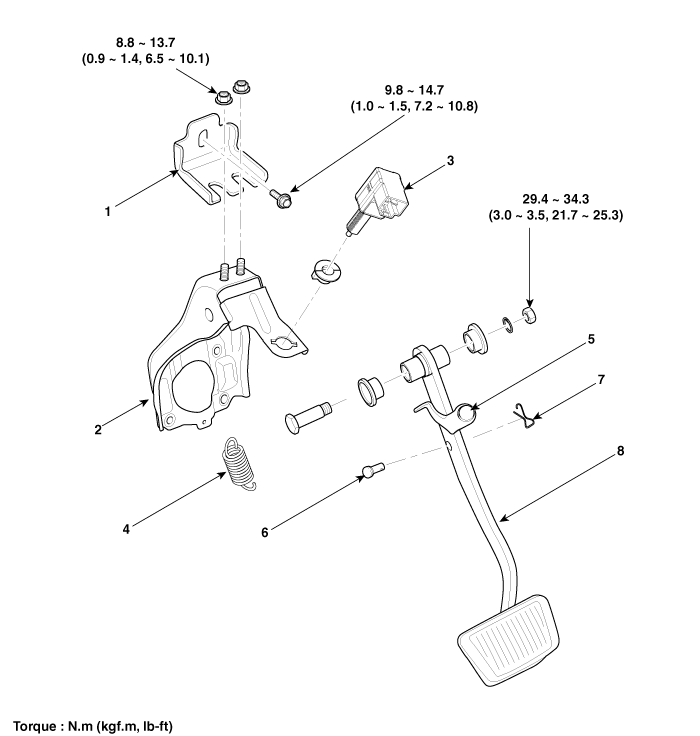

Components

1. Cowl bracket
2. Brake pedal member assembly
3. Stop lamp switch
4. Return spring
5. Brake pedal stopper
6. Clevis pin
7. Snap pin
8. Brake pedal
