Hyundai Sonata: Components and Components Location
Component Location
|

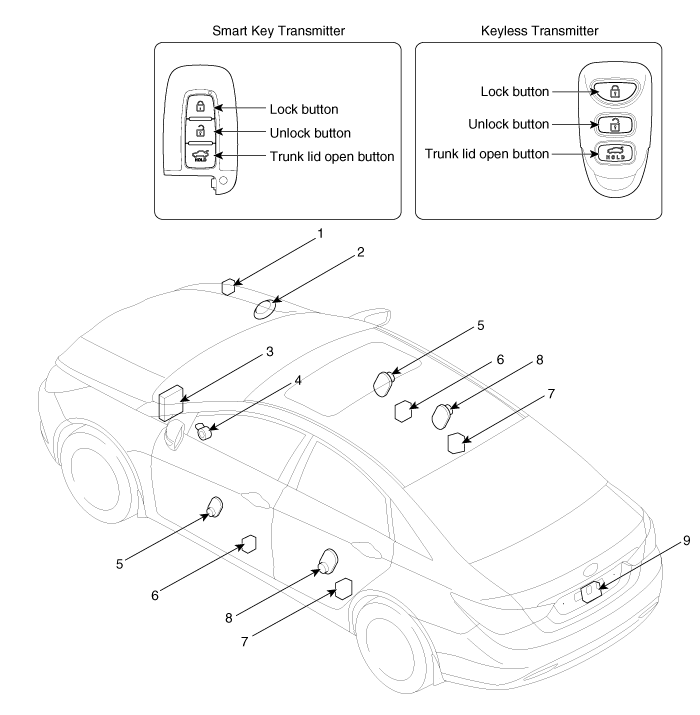

1. Hood switch 2. Burglar horn 3. BCM and RF antenna 4. Key warning switch 5. Front door switch |
6. Front door lock actuator & switch 7. Rear door lock actuator & switch 8. Rear door switch 9. Trunk lid open switch |
Specifications
Specification
Item
Description
Power source
3V
Operating temperature
-20°C ~ +60°C
RF Modulation
...
Description and Operation
Description
Burglar Alarm System
The burglar alarm system is armed automatically after the doors, hood,
and trunk lid are closed and locked.
The system is set off when any of these ...
