Hyundai Sonata: Components and Components Location - Lighting System - Body Electrical SystemHyundai Sonata: Components and Components Location

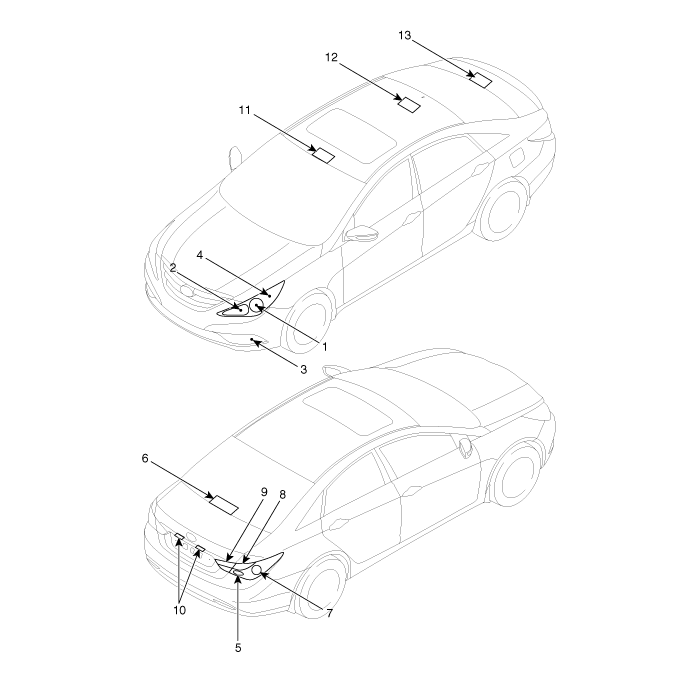

Component Location

1. Head lamp (Low)
2. Head lamp (High)
3. Front fog lamp
4. Turn signal/ Position lamp
5. Tail lamp
6. High mounted stop lamp
7. Tail lamp/Stop lamp
8. Turn signal lamp
9. Back up lamp
10. License plate lamp
11. Overhead console lamp
12. Room lamp/Map lamp (For sunroof)
13. Luggage lamp


    Specifications
    Specification Item Bulb Watt (W) Front Head lamp (High) 55 Head lamp (Low) 55 Turn signal ...

    Head Lamps. Components and Components Location
    Component 1. Head lamp assembly lens & housing 2. Head lamp (High) lamp 3. Dust cap 4. Socket 5. Turn signal/ Position lamp 6. Head lamp (Low) lamp ...
