Hyundai Sonata: Front Body. Body Repair - Body Dimensions - Body (Interior and Exterior)Hyundai Sonata: Front Body. Body Repair

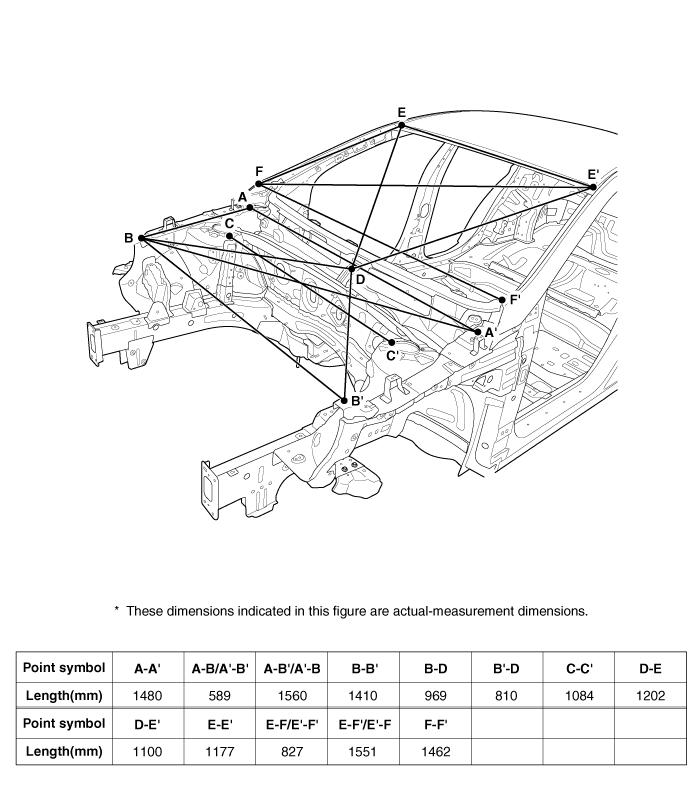

Front Body A

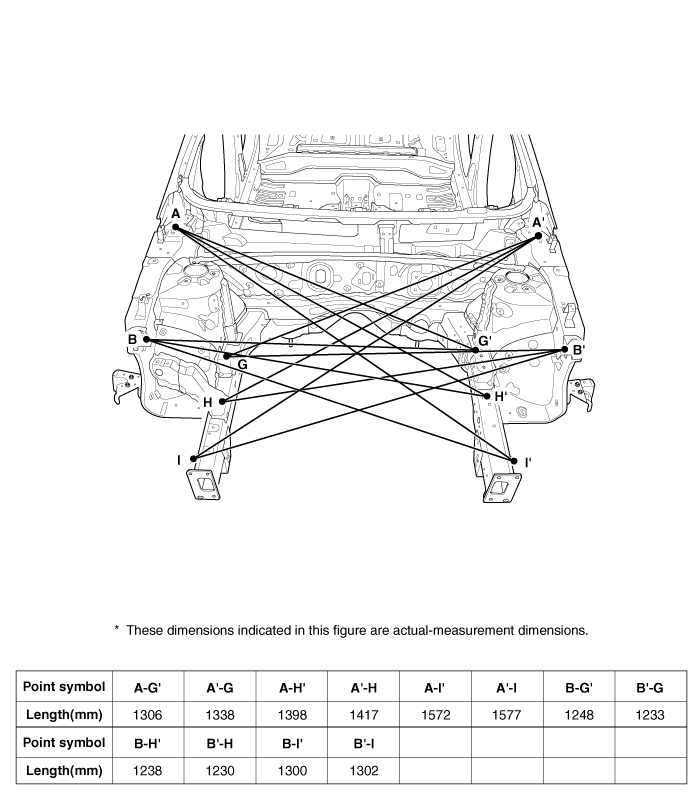

Front Body B

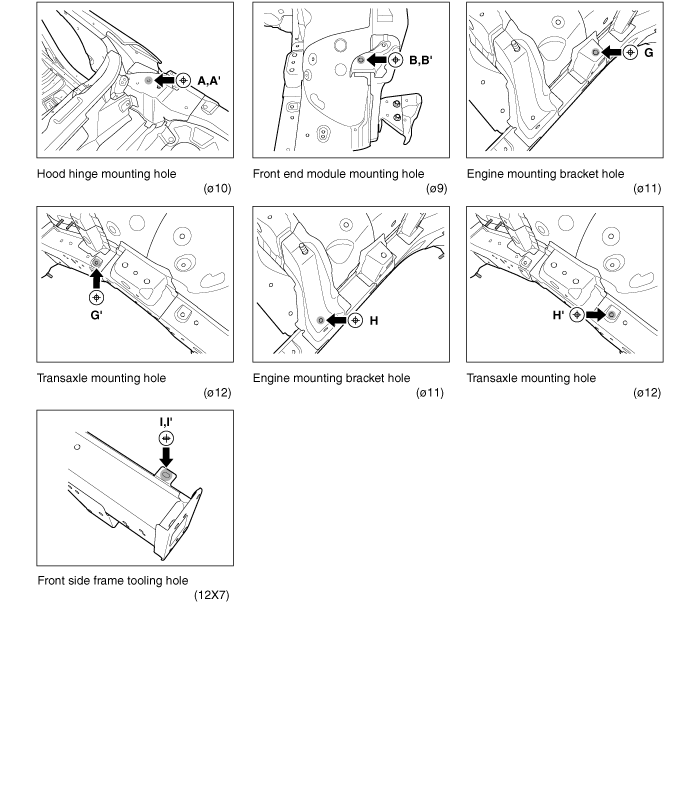

Front Body B

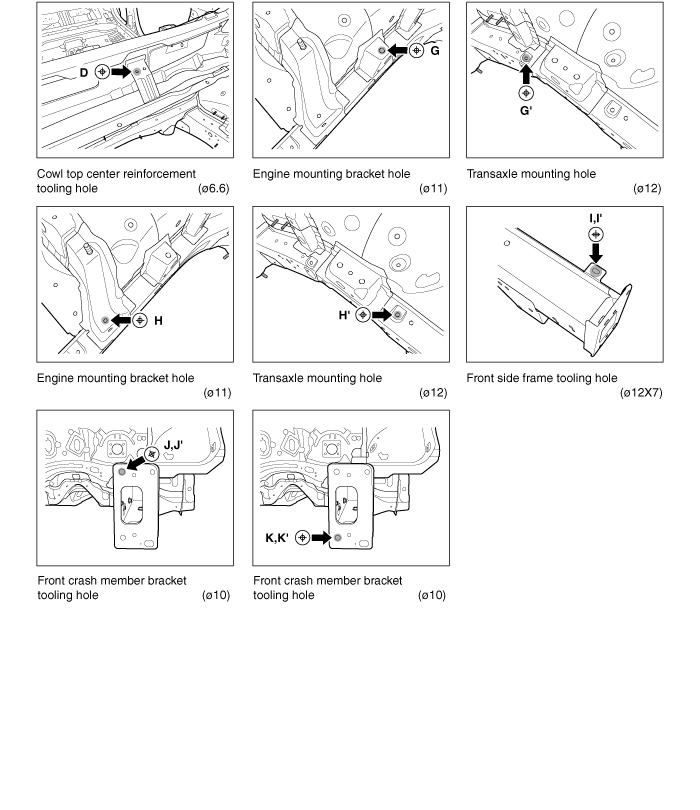

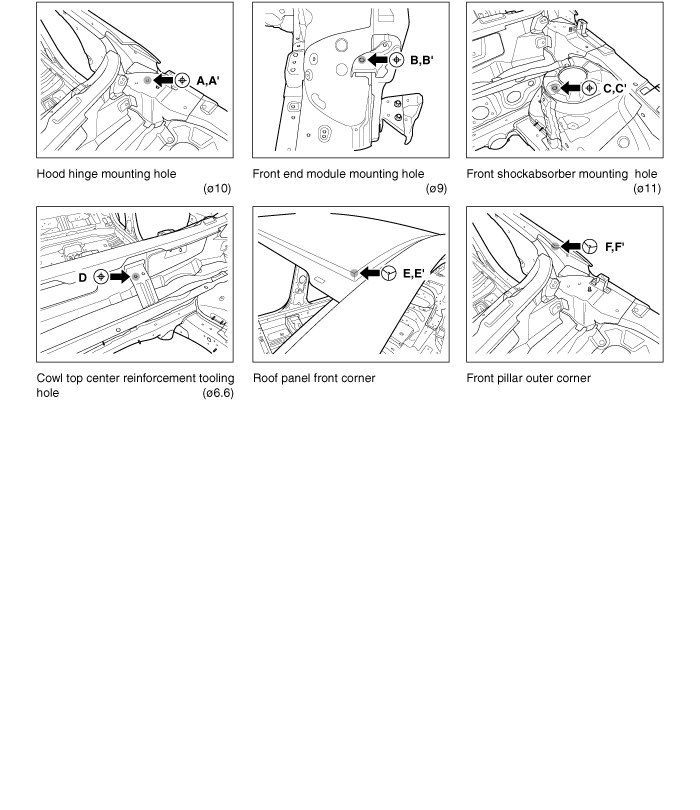

Front Body C

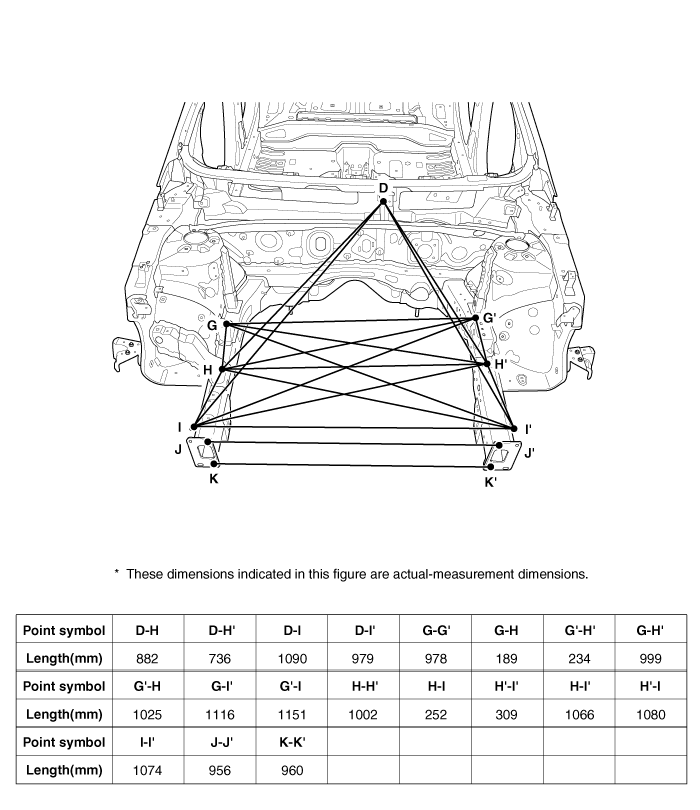

Front Body C


    General Information
    General 1. Basically, all measurements in this manual are taken with a tracking gauge. 2. When a measuring tape is used, check to be sure ...
