Hyundai Sonata: Cylinder Head. Components and Components Location - Cylinder Head Assembly - Engine Mechanical System - Hyundai Sonata YF 2011-2019 Service ManualHyundai Sonata: Cylinder Head. Components and Components Location

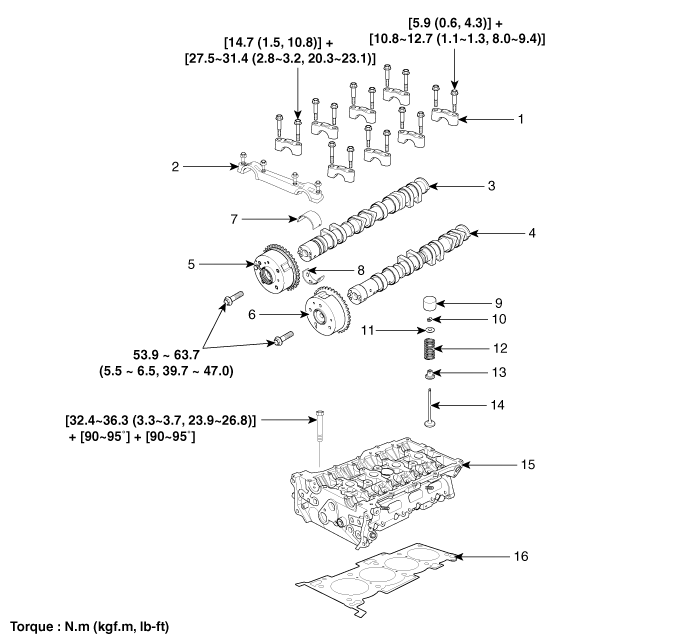

Components

1. Camshaft bearing cap
2. Camshaft front bearing cap
3. Exhaust camshaft
4. Intake camshaft
5. Exhaust CVVT assembly
6. Intake CVVT assembly
7. Exhaust camshaft upper bearing
8. Exhaust camshaft lower bearing
9. MLA
10. Retainer lock
11. Retainer
12. Valve spring
13. Valve stem seal
14. Valve
15. Cylinder head
16. Cylinder head gasket


    Cylinder Head. Repair procedures
    Removal Х Use fender covers to avoid damaging painted surfaces. ...
