Hyundai Sonata: Front Strut Assembly. Components and Components Location - Front Suspension System - Suspension SystemHyundai Sonata: Front Strut Assembly. Components and Components Location

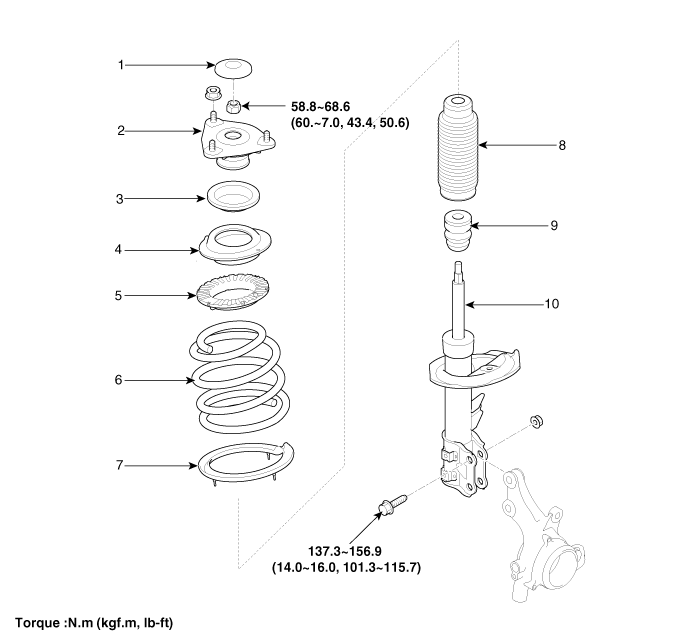

Components

1. Insulator cap
2. Insulator assembly
3. Strut bearing
4. Spring upper seat
5. Spring upper pad
6. Coil spring
7. Spring lower pad
8. Dust cover
9. Bumper rubber
10. Strut assembly




    Components and Components Location - Revised
    Components 1. Sub frame 2. Lower arm 3. Front disc 4. Drive shaft 5. Steering gearbox 6. Front stabilizer bar 7. Front strut assembly ...

    Front Strut Assembly. Repair procedures - Revised
    Replacement 1. Remove the front wheel & tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) ...
