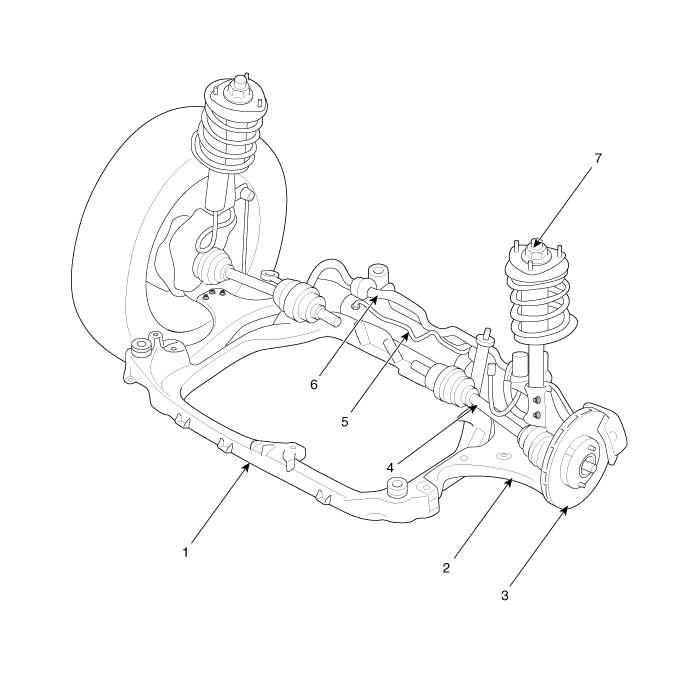

Components

1. Sub frame
2. Lower arm
3. Front disc
4. Drive shaft
5. Steering gearbox
6. Front stabilizer bar
7. Front strut assembly

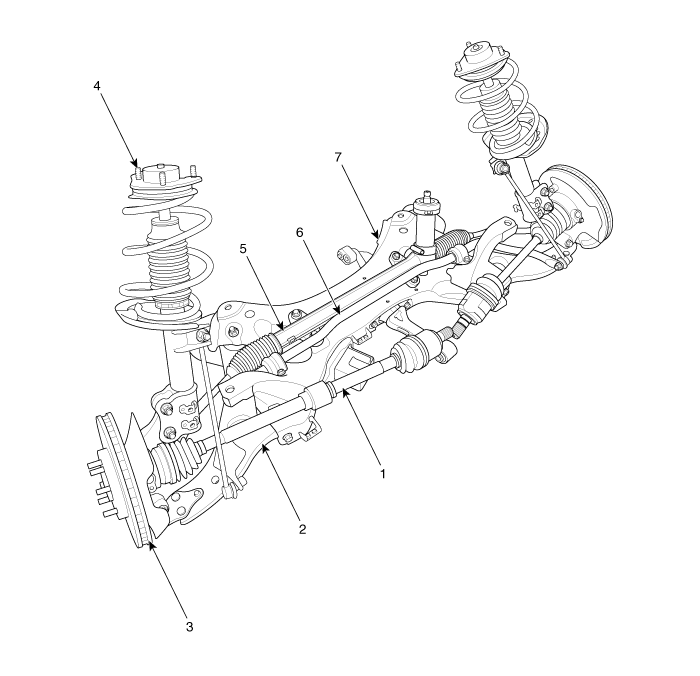

Components Location

1. Drive shaft
2. Lower arm
3. Front disc
4. Front strut assembly
5. Steering gearbox
6. Front stabilizer bar
7. Sub frame




    Front Strut Assembly. Components and Components Location
    Components 1. Insulator cap 2. Insulator assembly 3. Strut bearing 4. Spring upper seat 5. Spring upper pad 6. Coil spring 7. Spring lower pad 8. Dust ...
