Hyundai Sonata: Front Wheel Speed Sensor. Components and Components Location
Components
|

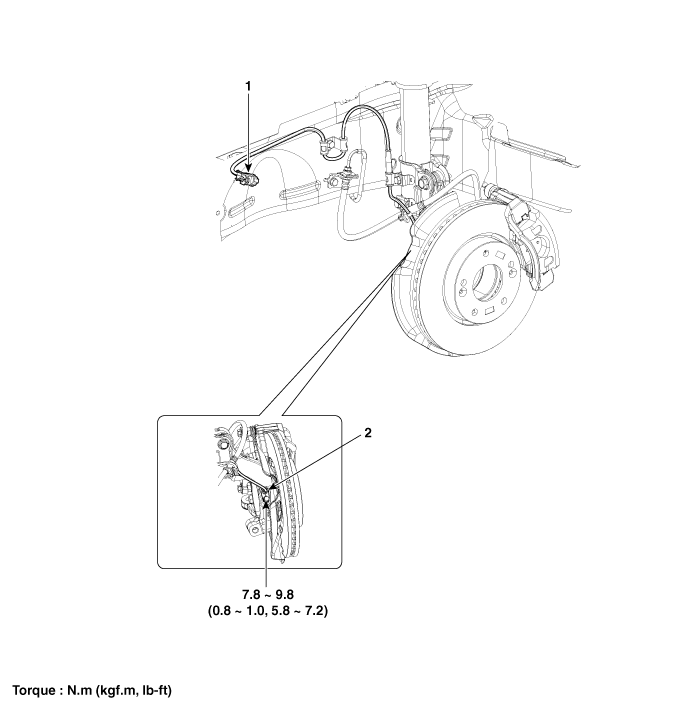

1. Front wheel speed sensor connector 2. Front wheel speed sensor |
ESC Control Module. Repair procedures
Removal
1.
Turn the ignition switch OFF.
2.
Remove the air cleaner assembly (A).
3.
Pull up the lock o ...
Front Wheel Speed Sensor. Repair procedures
Removal
1.
Remove the front wheel and tire.
Tightening torque:
88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)
...
