Hyundai Sonata: Fuse/relay panel description - Fuses - MaintenanceHyundai Sonata: Fuse/relay panel description

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

Inner panel fuse panel

Inner panel fuse panel

Engine compartment fuse panel

Engine compartment fuse panel

✽ NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

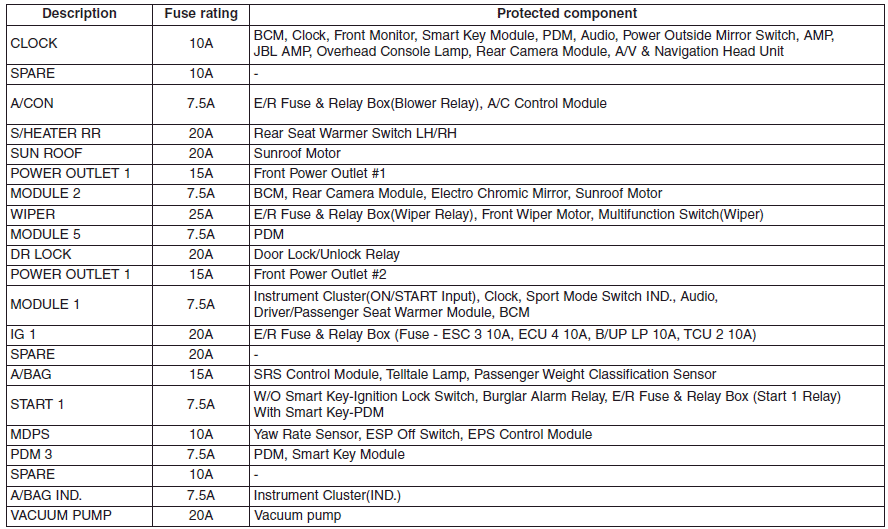

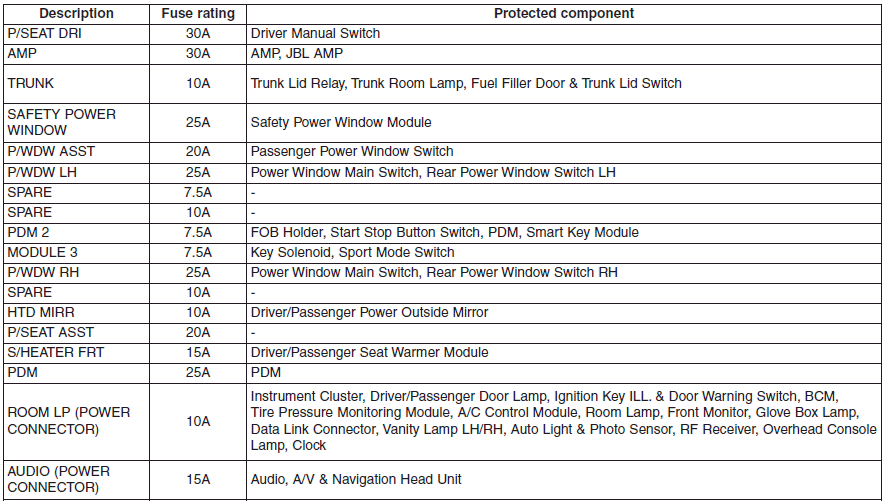

Instrument panel (Driver’s side fuse panel)

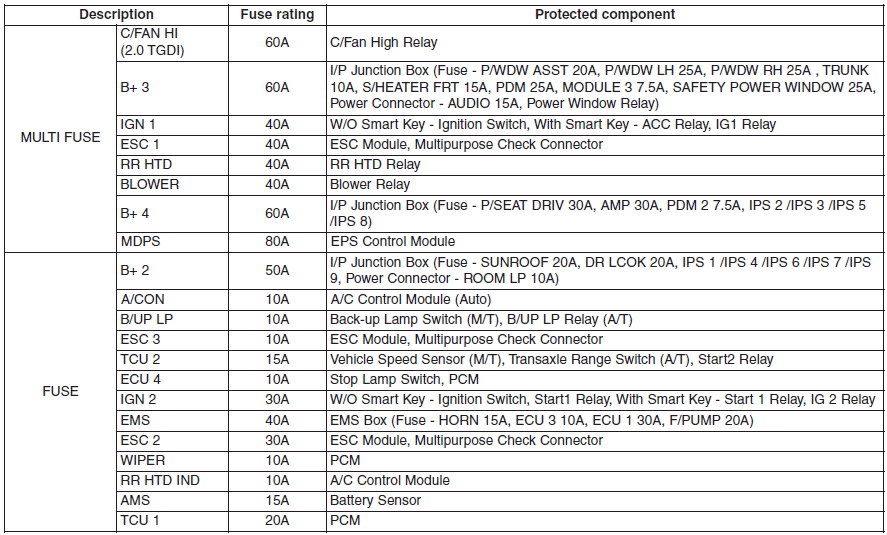

Engine compartment main fuse panel

Engine compartment main fuse panel
