Hyundai Sonata: Hands Free Switch. Schematic Diagrams - Hands Free System - Body Electrical SystemHyundai Sonata: Hands Free Switch. Schematic Diagrams

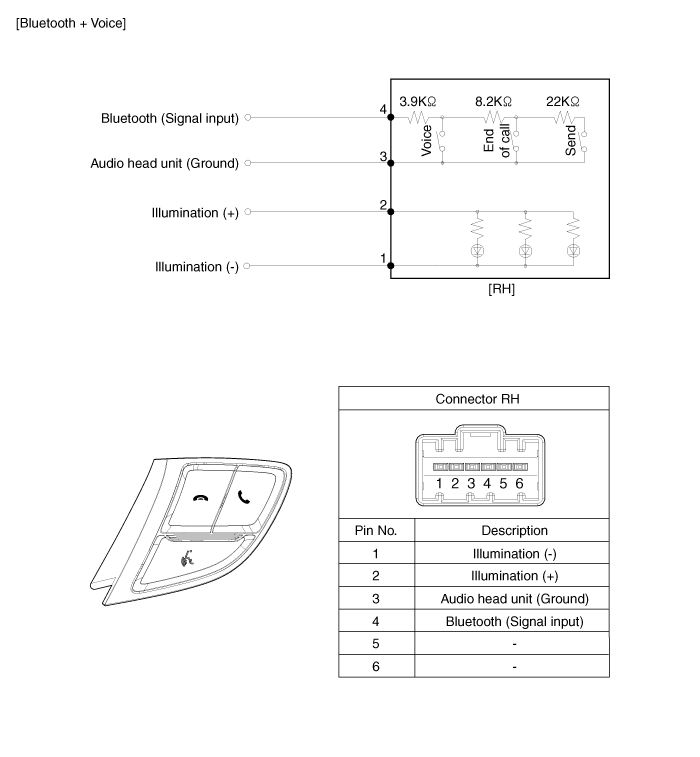

Circuit Diagram


    Description and Operation
    Function Audio Bluetooth System General Feature • This audio system supports Bluetooth®hands-free and stereo-headset features. - HANDS-FREE featur ...

    Hands Free Switch. Repair procedures
    Inspection 1. Check the hands free remote control switch for resistance between No.3 and No.4 terminals in each switch position. ...
