Hyundai Sonata: Injector. Troubleshooting - Engine Control System - Engine Control/Fuel SystemHyundai Sonata: Injector. Troubleshooting

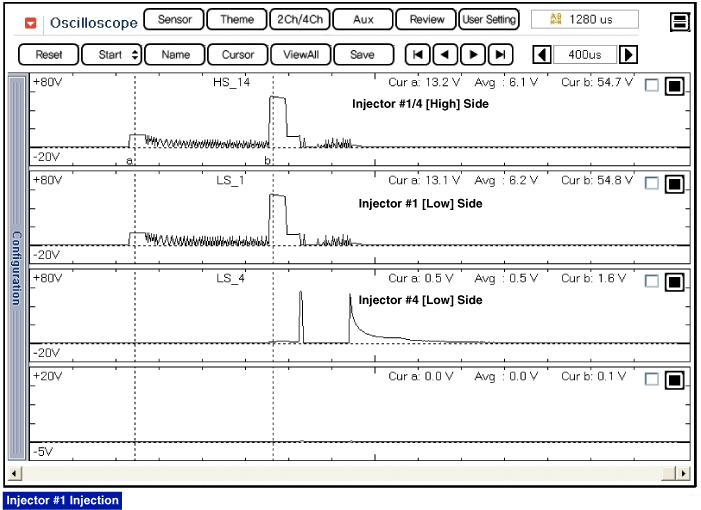

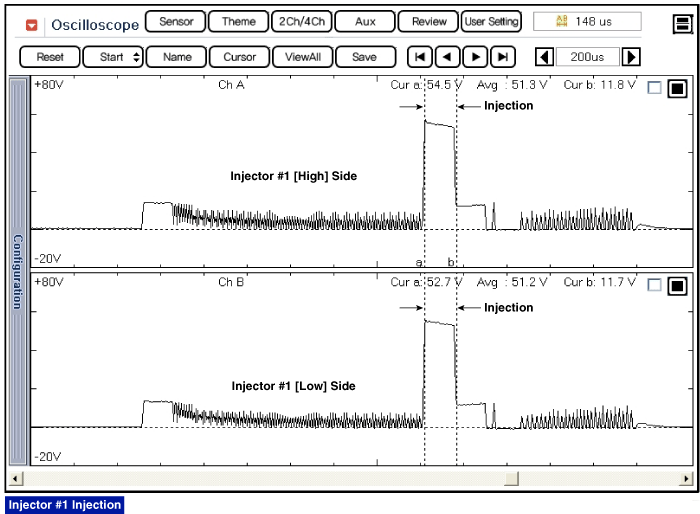

Signal Waveform


    Injector. Specifications
    Specification Item Specification Coil Resistance (Ω) 1.18 ~ 1.31 [20°C(68°F)] ...

    Injector. Schematic Diagrams
    Circuit Diagram ...
