Hyundai Sonata: Intake Manifold. Components and Components Location - Intake And Exhaust System - Engine Mechanical System - Hyundai Sonata YF 2011-2019 Service ManualHyundai Sonata: Intake Manifold. Components and Components Location

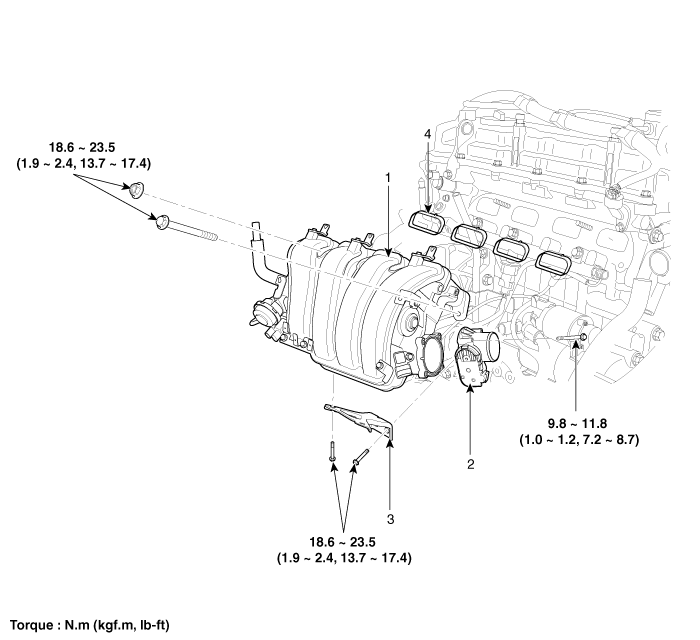

Components

1. Intake manifold assembly
2. Electronic throttle body
3. Intake manifold stay
4. Intake manifold gasket


    Intake Manifold. Repair procedures
    Removal and Installation 1. Remove the engine cover. 2. Disconnect the battery negative terminal (A). Tightening tor ...
