Hyundai Sonata: Interior light bulb replacement - Light bulbs - Maintenance - Hyundai Sonata YF 2011-2018 Owner's ManualHyundai Sonata: Interior light bulb replacement

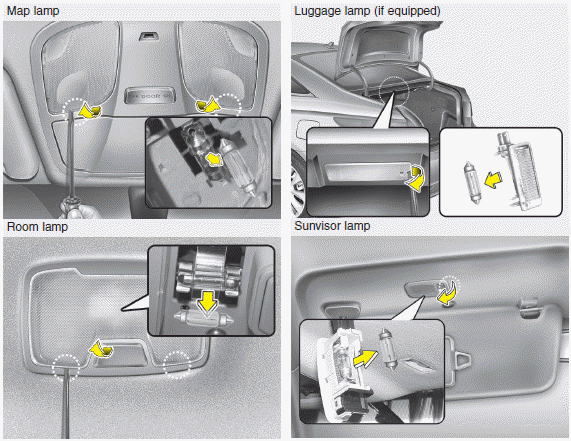

1. Using a flat-blade screwdriver, gently pry the lens from the interior light

1. Using a flat-blade screwdriver, gently pry the lens from the interior light housing.
2. Remove the bulb by pulling it straight out.

WARNING

Prior to working on the Interior Lights, ensure that the УOFFФ button is depressed to avoid burning your fingers or receiving an electric shock.

3. Install a new bulb in the socket.
4. Align the lens tabs with the interior light housing notches and snap the lens into place.

CAUTION

Use care not to dirty or damage lens, lens tab, and plastic housings.

    License plate light bulb replacement
    1. Loosen the retaining screws with a philips head screwdriver. 2. Remove the soket by turning it connterclockwise. 3. Remove the bulb by pulling it straight out. 4. Install a new bulb. 5. Rei ...
