Hyundai Sonata: Parking Brake Assembly. Components and Components Location - Parking Brake System - Brake System - Hyundai Sonata YF 2011-2019 Service ManualHyundai Sonata: Parking Brake Assembly. Components and Components Location

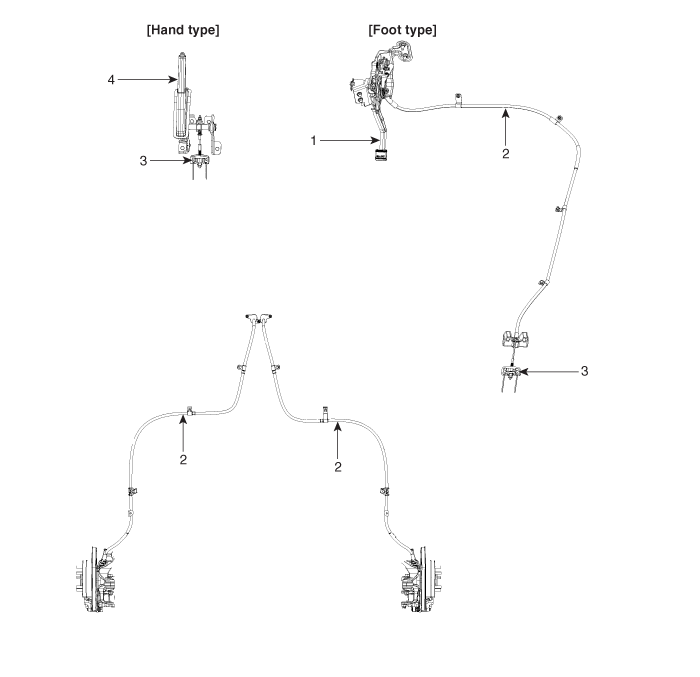

Components (1)

1. Parking brake pedal
2. Parking brake cable
3. Equalizer assembly
4. Parking brake lever assembly

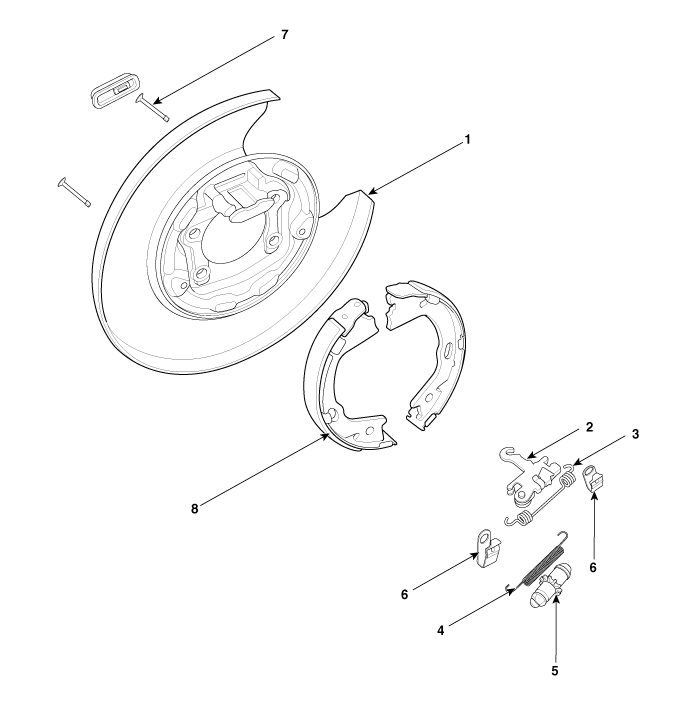

Components (2)

1. Backing plate
2. Operating lever
3. Upper spring
4. Lower spring
5. Adjuster
6. Shoe hold down spring
7. Shoe hold down pin
8. Shoe


    Parking Brake Assembly. Repair procedures
    Removal Parking Brake Pedal [Foot type] 1. Remove the crash pad lower panel. (Refer to the Body group-crash pad) 2. Remove the junctio ...
