Hyundai Sonata: PDM(Power Distribution Module). Schematic Diagrams - Button Engine Start System - Body Electrical SystemHyundai Sonata: PDM(Power Distribution Module). Schematic Diagrams

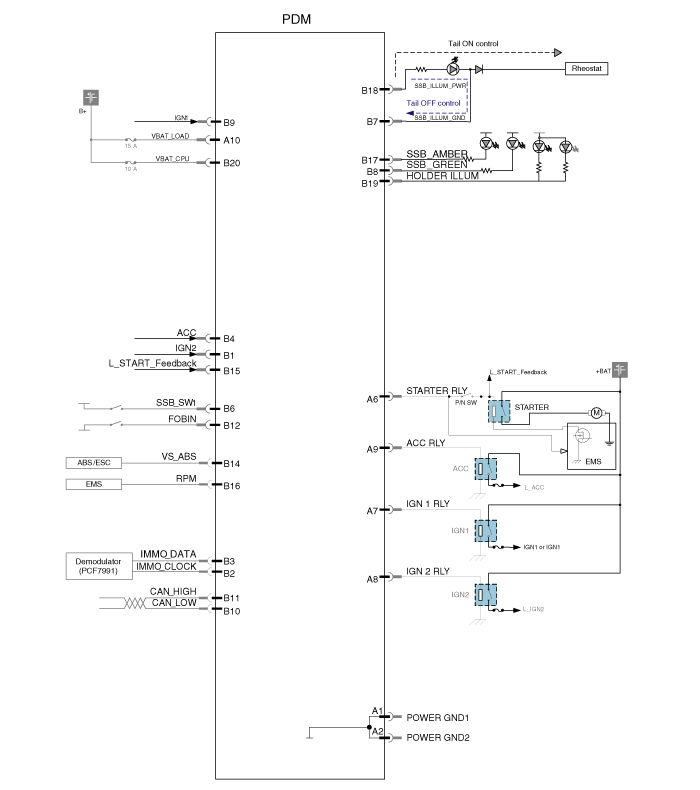

System Circuit Diagram


    PDM(Power Distribution Module). Repair procedures
    Inspection PDM Diagnosis With GDS 1. It will be able to diagnose defects of Smart key with GDS quickly. GDS can operates actuator forcefully, input/output valu ...
