Hyundai Sonata: Power Seat Control Switch. Schematic Diagrams - Seat Electrical - Body Electrical SystemHyundai Sonata: Power Seat Control Switch. Schematic Diagrams

Hyundai Sonata YF 2011-2014 Service Manual / Body Electrical System / Seat Electrical / Power Seat Control Switch. Schematic Diagrams

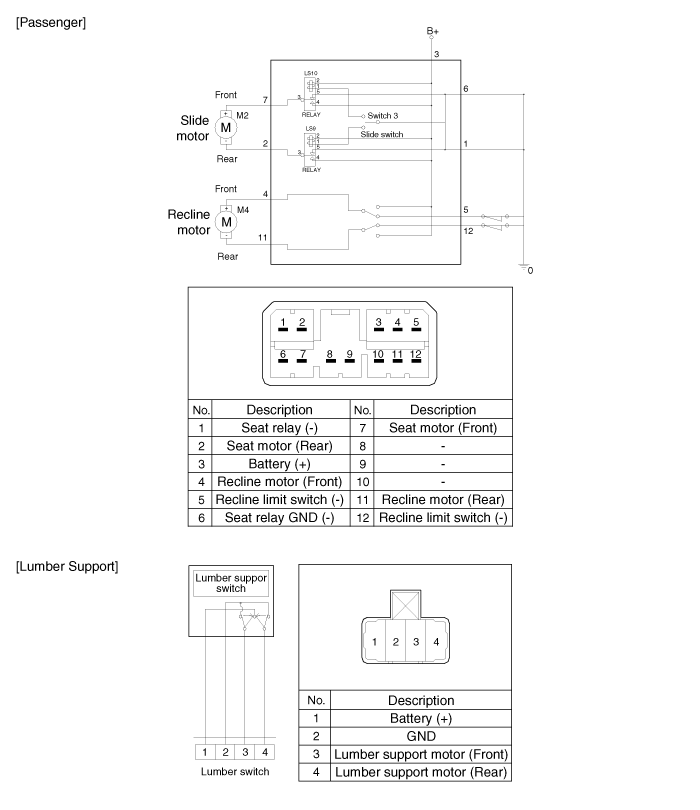

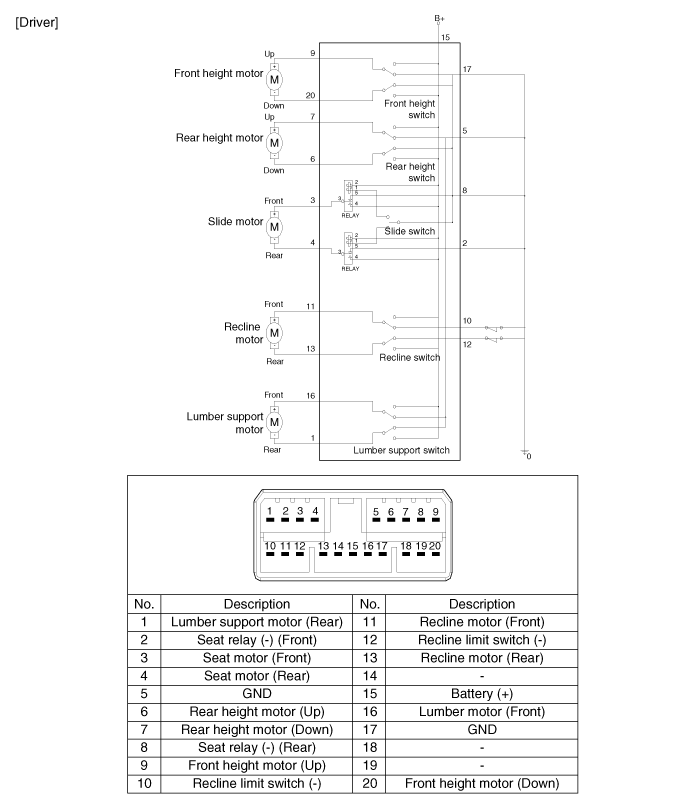

Circuit Diagram


    Power Seat Motor. Repair procedures
    Inspection Power Seat Motor 1. Disconnect the connectors for each motor. A : Front height motor B : Slide motor C : Rear height motor D : Re ...

    Power Seat Control Switch. Repair procedures
    Inspection With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch. A ...
