Inspection

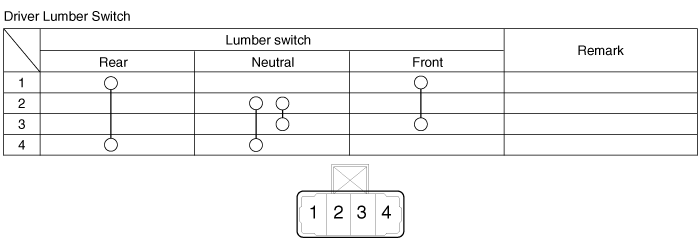

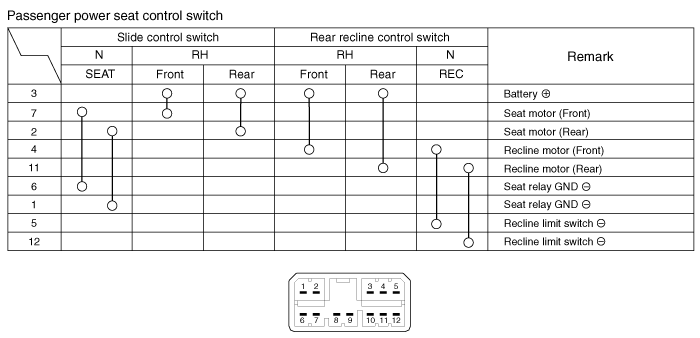

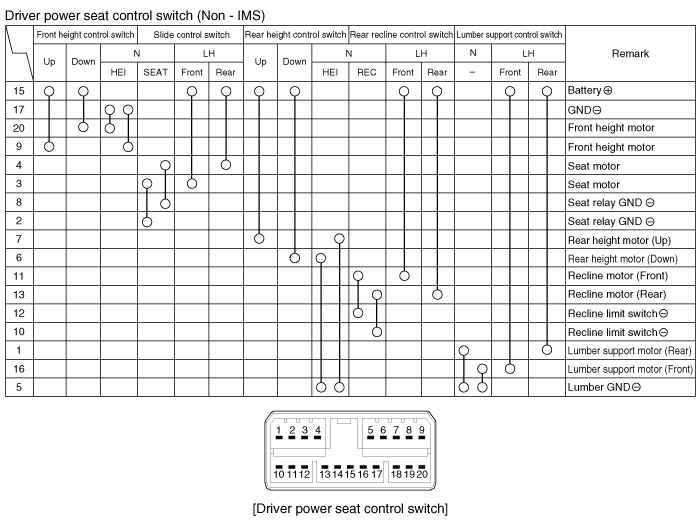

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.
A : Power seat control switch
B : Lumber support switch


Removal

1.
Disconnect the negative (-) battery terminal.
2.
Remove the seat side cover (A).
(Refer to the BD group - "Front seat")
3.
Disconnect the power seat control switch connector (A).
4.
Loosen the power seat control switch (A) mounting screws (3EA).

Installation

-
Make sure that the IMS control switch connectors and related connectors are plugged in properly.
-
Check the IMS control switch operates normally.
1.
Connect the connectors and reassemble the IMS control switch.
2.
Reassemble the seat side cover.
