Hyundai Sonata: Radiator. Components and Components Location - Cooling System - Engine Mechanical SystemHyundai Sonata: Radiator. Components and Components Location

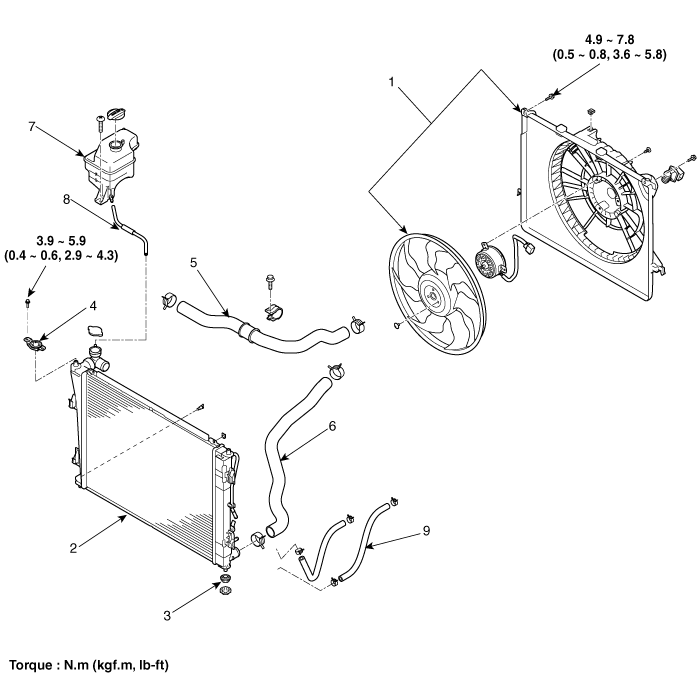

Components

1. Cooling fan assembly
2. Radiator
3. Mounting insulator
4. Radiator mounting bracket
5. Radiator upper hose
6. Radiator lower hose
7. Reservoir tank
8. Over flow hose
9. ATF cooler hose


    Coolant. Repair procedures
    Refilling And Bleeding Never remove the radiator cap when the engine is hot. Serious scalding could be caused by hot fluid und ...

    Radiator. Repair procedures
    Removal and Installation 1. Disconnect the battery terminals. (Refer to Engine and transaxle assembly in this group) 2. Remove the air ...
