Hyundai Sonata: Schematic Diagrams - Back View Camera System - Body Electrical SystemHyundai Sonata: Schematic Diagrams

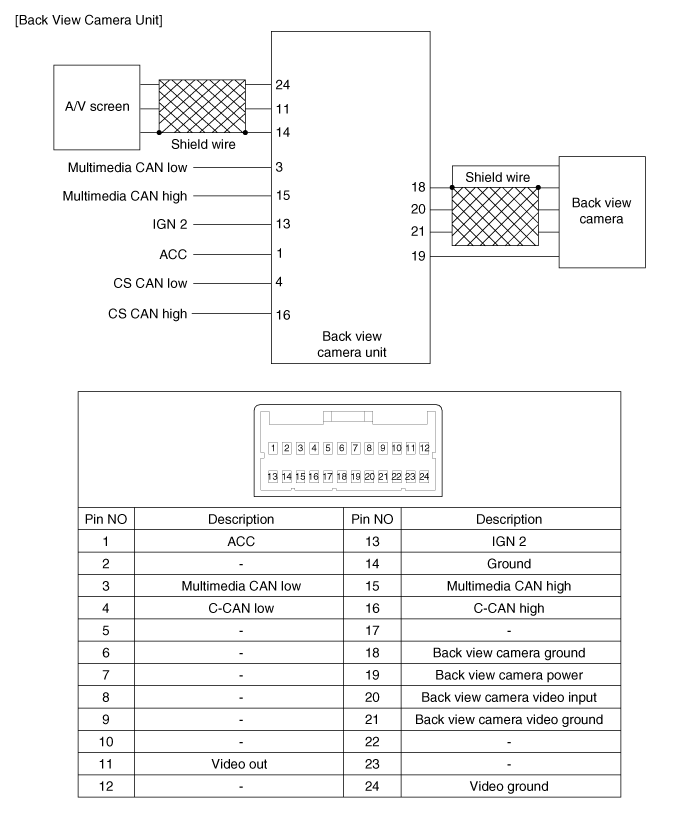

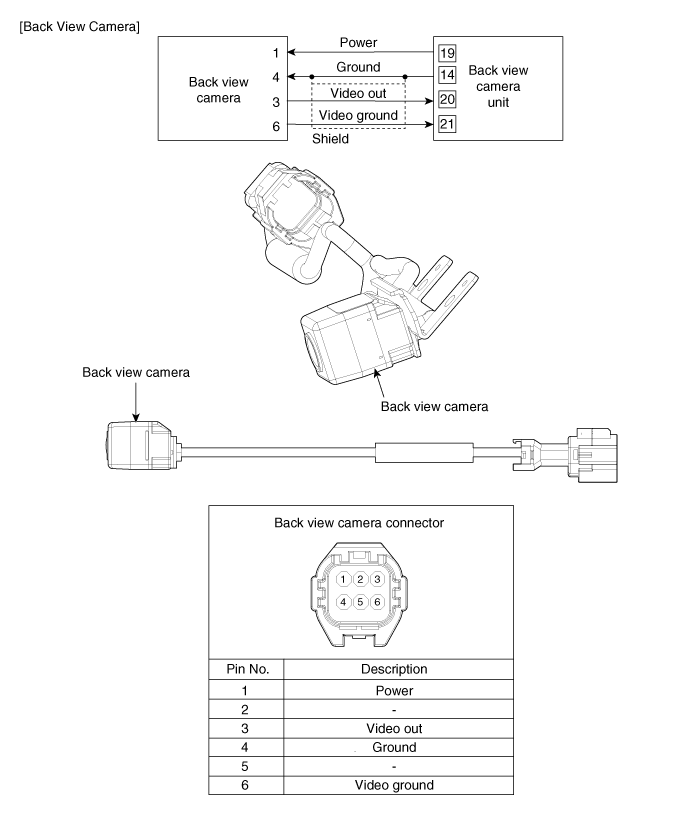

Circuit Diagram


    Components and Components Location
    Component Location 1. Back view camera 2. Back view camera unit 3. LCD monitor ...

    Description and Operation
    Description Back view camera will activate when the backup light is ON with the ignition switch ON and the shift lever in the R position. This system is a supplemental system that shows beh ...
