Hyundai Sonata: Trunk Trim. Repair procedures - Interior - Body (Interior and Exterior)Hyundai Sonata: Trunk Trim. Repair procedures

Replacement

•
Put on gloves to protect your hands.
•
When plying with a flat-tip screwd river, wrap it with protective tape to prevent damage.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the trunk trim.
2.
Installation is the reverse of removal.
•
Replace any damage clips.

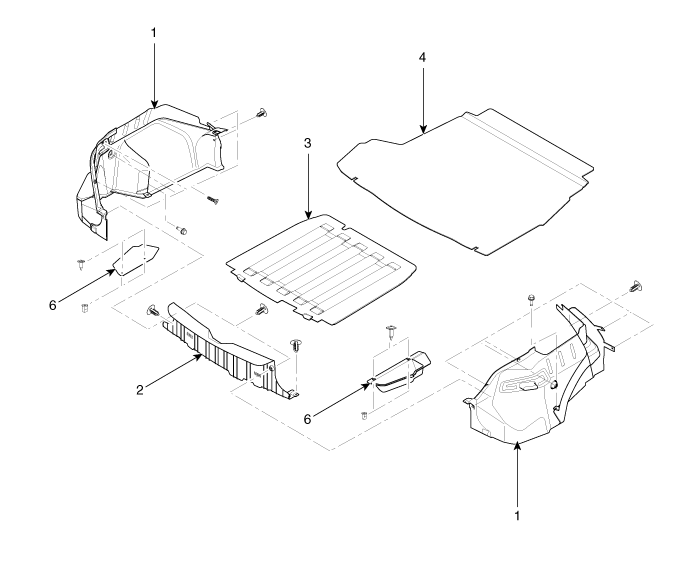

1. Luggage side trim
2. Rear transverse trim
3. Board & jack handle assembly
 4. Luggage cover met
5. Luggage side board (LH)
6. Luggage side tray (RH)
