Hyundai Sonata: Variable Intake Solenoid (VIS) Valve. Schematic Diagrams - Engine Control System - Engine Control/Fuel SystemHyundai Sonata: Variable Intake Solenoid (VIS) Valve. Schematic Diagrams

Hyundai Sonata YF 2011-2014 Service Manual / Engine Control/Fuel System / Engine Control System / Variable Intake Solenoid (VIS) Valve. Schematic Diagrams

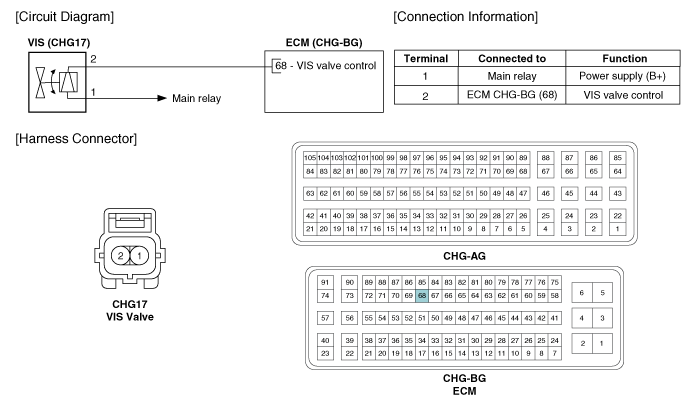

Circuit Diagram


    Variable Intake Solenoid (VIS) Valve. Specifications
    Specification Item Specification Coil resistance (Ω) 30.0 ~ 35.0 [20°C(68°F)] ...

    Variable Intake Solenoid (VIS) Valve. Repair procedures
    Inspection 1. Turn the ignition switch OFF. 2. Disconnect the VIS valve connector. 3. Measure resistance betwe ...
