Hyundai Sonata: Water pump. Components and Components Location - Cooling System - Engine Mechanical SystemHyundai Sonata: Water pump. Components and Components Location

Hyundai Sonata YF 2011-2014 Service Manual / Engine Mechanical System / Cooling System / Water pump. Components and Components Location

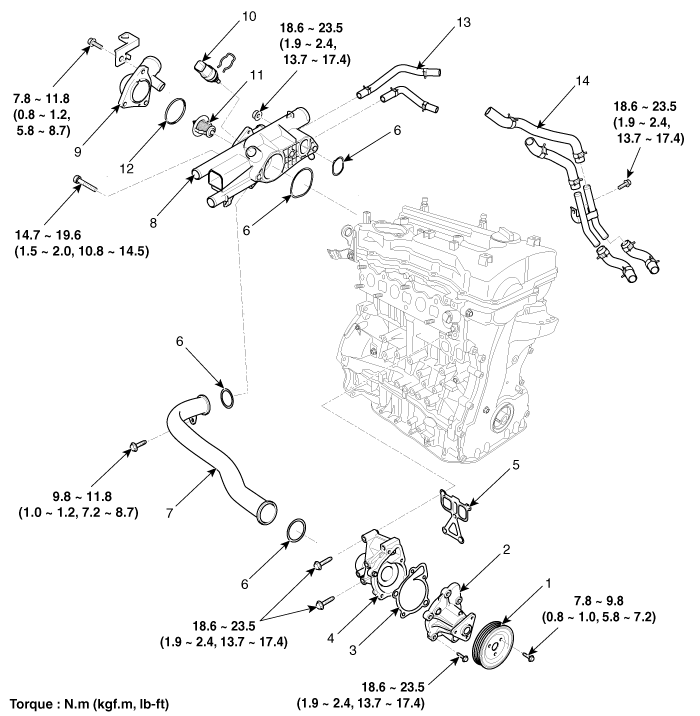

Components

1. Water pump pulley
2. Water pump
3. Water pump gasket
4. Water pump housing
5. Water pump housing gasket
 6. O-ring
7. Water inlet pipe
8. Water temperature control assembly
9. Water inlet fitting
10. Engine coolant temperature sensor
 11. Thermostat
12. Thermostat gasket
13. Throttle body coolant hose
14. Oil cooler coolant hose
