Hyundai Sonata: Yaw-rate and Lateral G Sensor. Description and Operation - ESC(Electronic Stability Control) System - Brake System - Hyundai Sonata YF 2011-2019 Service ManualHyundai Sonata: Yaw-rate and Lateral G Sensor. Description and Operation

Description

When the vehicle is turning with respect to a vertical axis the yaw rate sensor detects the yaw rate electroniclly by the vibration change of plate fork inside the yaw rate sensor.
If yaw velocity reaches the specific velocity after it detects the vehicle'yawing, the ESC control is reactivated.
The later G sensor senses vehicle's lateral G. A small element inside the sensor is attached to a deflectable leverarm by later G.

Specifications
Description
Specification
Remarks
Operating voltage
7 ~ 18V

Output signal
CAN Interface

Operating temperature
-40 ~ 85°C (-40 ~ 185°F)

Yaw-rate sensor measurement range
-100 ~ 100°/sec

Lateral G sensor measurement range
-1.8 ~ +1.8g

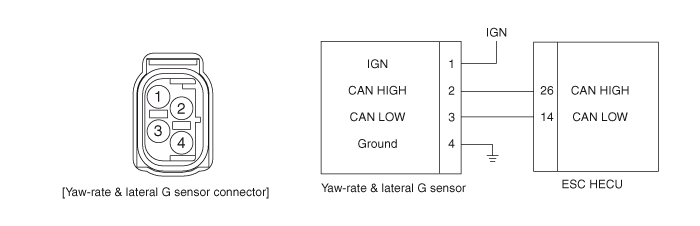

External Diagram
