Hyundai Sonata: Camshaft Position Sensor (CMPS). Schematic Diagrams - Engine Control System - Engine Control/Fuel SystemHyundai Sonata: Camshaft Position Sensor (CMPS). Schematic Diagrams

Hyundai Sonata YF 2011-2014 Service Manual / Engine Control/Fuel System / Engine Control System / Camshaft Position Sensor (CMPS). Schematic Diagrams

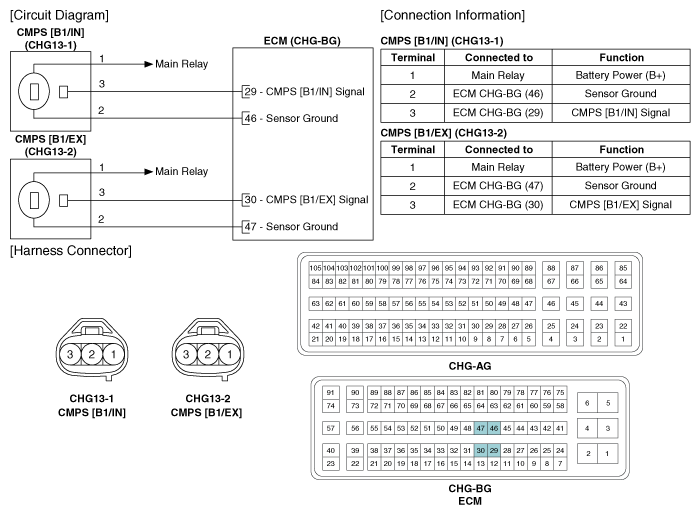

Circuit Diagram


    Camshaft Position Sensor (CMPS). Repair procedures
    Inspection 1. Check the signal waveform of the CMPS and CKPS using the GDS. Specification: Refer to “Wave Form” ...
